RS PRO Polyamide Friction Hinge, Screw Fixing, 55mm x 65mm x 4.5mm, Петля

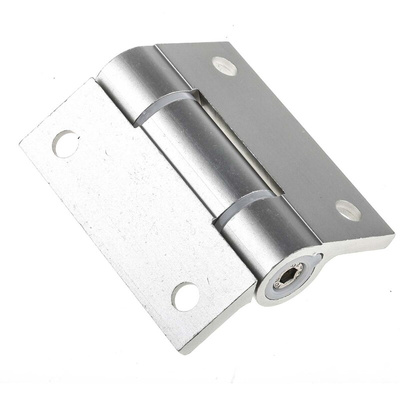

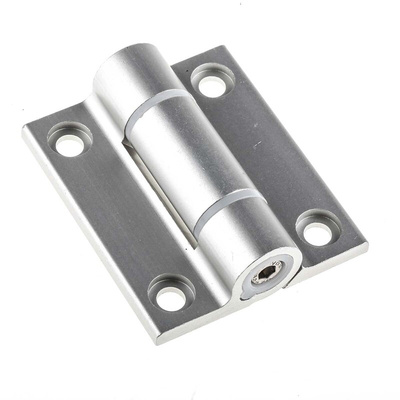

RS PRO Anodised Polyamide Torque Hinge Screw, 55 mm x 65 mm x 4.5 mm

These torque hinge screws from our trusted RS PRO range use friction to provide resistance to pivoting motion. That means they won't move once they've been fixed. They're useful for positioning display devices, panels or lids at set angles.

Made from 4.5 mm thick anodised aluminium, the hinges have a simple but robust design which ensures a long life. Anodising creates a tough layer that protects the underlying aluminium from wear and tear. As a result, these hinges have excellent corrosion resistance. A hex key can be used to adjust friction torque or to get a smoother or tighter motion and hold. You can install these hinge screws on both right-hand and left-hand doors.

This product is RoHS (Restriction of Hazardous Substances) compliant and meets electrostatic control standards. You'll find hinge screws such as these in industrial environments where control panels or lids must remain open.

Features and Benefits

• Torque hinge screws made from anodised polyamide
• Free swinging
• Length of 55 mm
• Width of 65 mm
• Material thickness of 4.5 mm
• Screw fixing
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
