TRACOPOWER Switching Power Supply, TXM 015-112, 12V dc, 1.3A, 15W, 1 Output, 85 → 264 V ac, 120 → 375 V, Источник питания

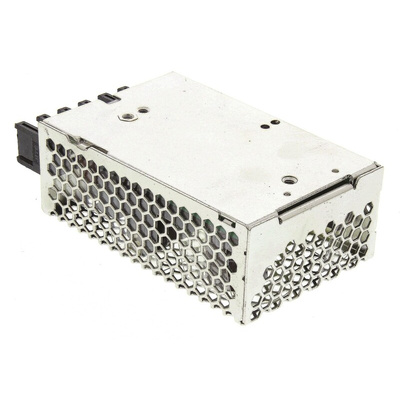

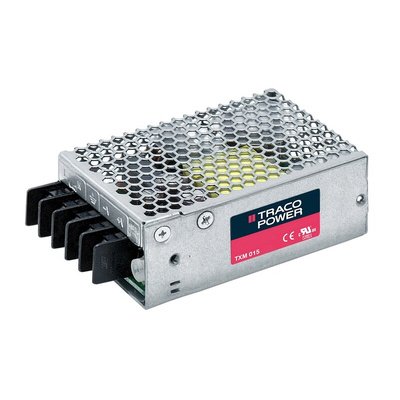

Traco Power Switching Power Supply, 12V DC Output Voltage, 15.6W Power Rating - TXM 015 Series - TXM 015-112

Looking to convert power in your system without a hitch? Turn to this switching power supply from Traco Power. It takes in variable inputs from 85 to 264V AC and 120 to 375V DC and steps them down to a stable 12V DC to safely power your equipment. As it's 82% efficient, you can be sure there's minimal energy lost as heat. This ensures the unit keeps its cool just with natural convection, so you won't need a heatsink. Set-up is a walk in the park, as you can simply mount it onto a chassis. Thanks to its compact dimensions of 79 (L) x 51 (W) x 28.8mm (D), this is a handy choice for installation in tight spaces.

Features & Benefits

• Safe for use in demanding environments, thanks to a wide operating temperature range between -25°C and +70°C
• Aluminium case protects internal parts against impact and corrosion
• Mean time between failures of 200,000 hours for long-lasting use

Applications

• IT systems
• Medical devices
• Lighting rigs

How do I wire this device?

It has screw terminals, so you can secure your wires in no time using just a screwdriver.
