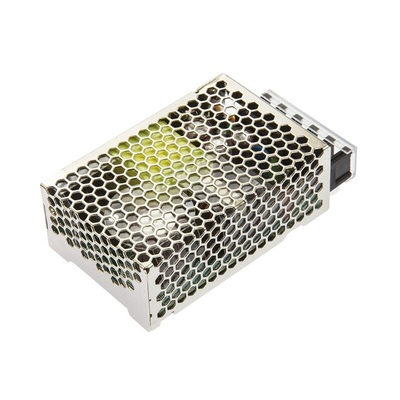

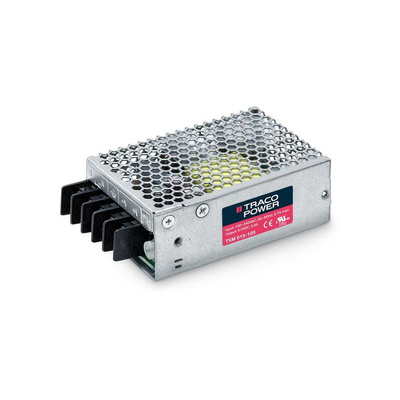

TRACOPOWER Switching Power Supply, TXM 015-105, 5V dc, 3A, 15W, 1 Output, 85 → 264 V ac, 120 → 375 V dc, Источник питания

Traco Power Switching Power Supply, 79 (L) x 51 (W) x 29mm (D), Chassis Mounting - TXM 015 Series - TXM 015-105

Need an easy way to convert power for your equipment? Choose this switching power supply from Traco Power. It's a 15W solution with a 5V DC output voltage that's adjustable by -5% to +10% to accurately match the needs of your application. Thanks to its universal AC input range, this unit's compatible with any power supply, so it's a versatile choice. It can also withstand a 300V AC input surge for up to five seconds to safeguard your circuits from damage. A fan-free natural convection cooling system means this power supply runs quietly.

Features & Benefits

• Operates in temperatures between -25°C and +70°C so it's a handy choice in harsh settings
• Screw terminal block connections ensure wires stay in place
• Chassis mounted for quick and easy installation
• Weighs just 180g, so it doesn't strain the mounting surface
• Energy-efficient, thanks to its

Applications

• Production lines
• Networking equipment
• HVAC systems

Can I use this unit with DC inputs?

Yes, as well as handling AC inputs from 85 to 264V AC, it converts DC voltages from 120 to 375V DC. This makes it a versatile option to have on hand.

Industrial Power Solutions Catalogue

Selection Guide

Datasheet - TXM 015 Series

Instruction Sheet - TXM 015-105
