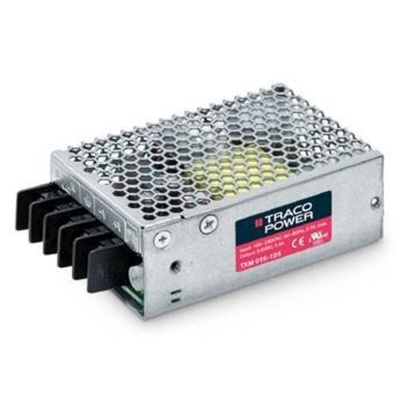

TRACOPOWER Switching Power Supply, TXM 015-124, 24V dc, 700mA, 15W, 1 Output, 90 → 264V ac Input Voltage, Источник питания

Traco Power Switching Power Supply, 15W Power Rating, 85% Efficiency - TXM 015 Series - TXM 015-124

Convert voltages and currents in a jiffy with this 15W switching power supply from Traco Power. When supplied with an input voltage between 88 and 264V AC or 124 and 370V DC, it provides an output voltage of 24V DC to your connected equipment. This low-profile unit measures just 79 (L) x 51 (W) x 28.8mm (D), so it happily squeezes into tight work areas. A high efficiency of 85% means you can rest assured it wastes minimal energy.

Features & Benefits

• Screw terminal block connection for simple and secure wiring
• Surge protection of 300V AC for up to five seconds to prevent electrical hazards
• Wide operating temperature range between -25°C and +70°C for use in demanding environments
• Quick start-up time of 1 to 2ms for rapid conversions
• Metal casing for resistance to impact and wear

Applications

• Security systems
• Machine tool manufacturing
• Servers

How reliable is this product?

This unit has an MTBF of 200,000 hours at +25°C, so you can count on it for the long haul.
