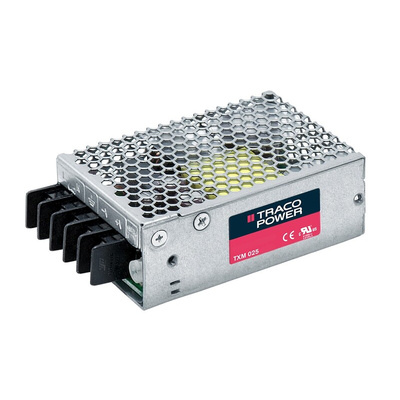

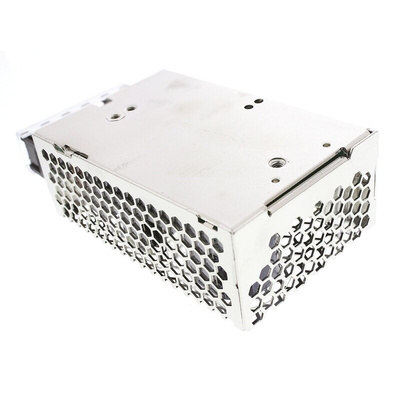

TRACOPOWER Switching Power Supply, TXM 025-112, 12V dc, 2.1A, 25W, 1 Output, 85 → 264 V ac, 120 → 375 V, Источник питания

Traco Power Switching Power Supply, 82% Efficiency, 12V DC Output Voltage - TXM 025 Series - TXM 025-112

Keen to take charge of the voltage levels in your system? Pick up this switching power supply from Traco Power. It gives you a stable energy source for your low-voltage devices, as it converts inputs between 85 and 264V AC or between 120 and 375V DC to an output voltage of 12V DC. The aluminium case is resistant to impact and corrosion, so it holds up in harsh industrial settings. Compact dimensions of 79 (L) x 51 (W) x 28.8mm (D) mean this is an ideal fit for setups where space is limited. Screw terminals ensure a secure electrical connection, even in the event of heavy vibrations.

Features & Benefits

• Efficiency rating of 82% indicates it wastes little energy as heat
• Performs reliably in harsh environments, thanks to a wide operating temperature range of -25°C to +70°C
• Continuous short-circuit protection prevents equipment damage caused by faults

Applications

• Networking equipment
• Renewable energy systems
• Server rooms

How long will this device last?

It has a mean time between failures of 200,000 hours, so you can count on it for the long haul.
