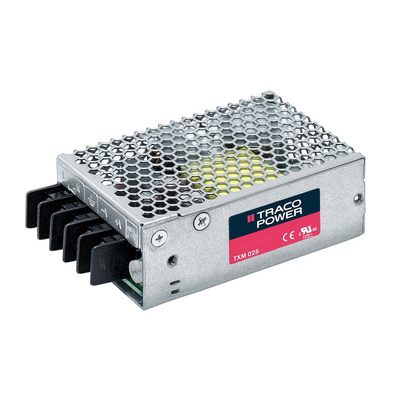

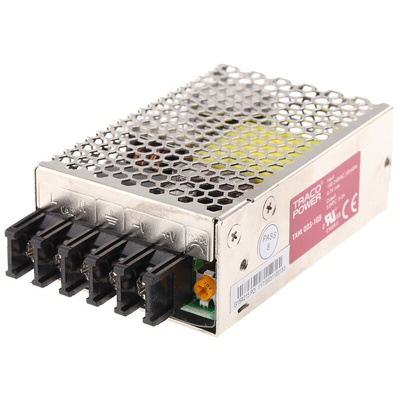

TRACOPOWER Switching Power Supply, TXM 025-105, 5V dc, 5A, 25W, 1 Output, 90 → 264V ac Input Voltage, Источник питания

15W to 150W, Universal Input, Single Output, TXM Series

The Traco Power TXM is a series of Power supplies in metal enclosure. The TXM is designed for a variety of cost critical applications. These Traco Power supplies have a low profile case and screw terminal block connections, which make them easy to install. The TXM Power supplies have a universal input and they comply with European EMC standards and with the Low Voltage Directive (LVD).

Very compact Power supplies
Cost optimized design
Low no load power consumption <0.5W up to 75W units
Screw terminal block
No internal fan up to 150W models
Universal input 88-264 V ac
Adjustable output voltage

Standards

UL 60950-1, IEC 60950-1, EN 60950-1

Approvals

UL, cUL, CB report

Switch Mode - Traco TXM Series

TXM 025-105 Datasheet

Industrial Power Solutions Catalogue

Selection Guide
