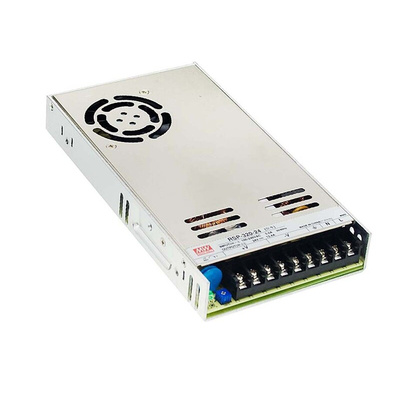

MEAN WELL Switching Power Supply, RSP-320-5RS, 5V dc, 60A, 300W, 1 Output, 124 → 370 V dc, 88 → 264 V ac, Источник питания

7704049
Номер производителя: RSP-320-5RSПроизводитель: MEAN WELL
Цена за шт.
26540.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+ −

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Mean Well Switch Mode Power Supply

The Mean Well RSP-320 series 300W single output AC to DC embedded switch mode power supply has an output current rating of 60A at 5VDC. It has a universal input supply voltage rating from 88VAC to 264VAC and 124VDC to 370VDC. The power supply is 40% smaller as compared to corresponding models. The ambient temperature ranges from 30°C and 50°C under full load conditions and up to 70°C considering suitable derating.
.

Features and Benefits

Low profile, 30mm design for 1U installation
Built-in active PFC function
high-efficiency up to 90%
Forced air cooling by built-in DC fan
Short circuit protection
Overload protection
Overvoltage and over temperature protection
LED indicator

Applications

Industrial control system
Mechanical
Electrical industry
Instruments
LED display or any systems require low profile installations
•

Certifications

UL60950-1
CUL60950-1
TUV60950-1
CB approved
CCC approved
EN55032 (CISPR32) class B
EN61000-3-2,-3
GB9254 class B
GB17625.1

Техническая спецификация
pdfRSP-320 Series specification sheet
pdfDeclaration Of Conformity
Вес:
900гр
Входное напряжение:
124 → 370 V dc, 88 → 264 V ac
Выходной ток:
60A
Глубина:
30мм
Длина:
215мм
Количество выходов:
1
Максимальная температура:
+70°C
Минимальная температура:
-30°C
Мощность номинальная:
300Вт
Напряжение выходное:
5В пост. тока
Тип монтажа:
Монтаж на шасси
Тип упаковки:
Enclosed
Ширина:
115мм
Эффективность:
85%
