MEAN WELL Switching Power Supply, RSP-320-12RS, 12V dc, 26.74A, 320W, 1 Output, 124 → 370 V dc, 88 → 264, Источник питания

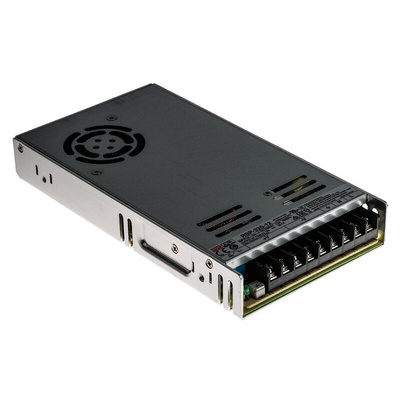

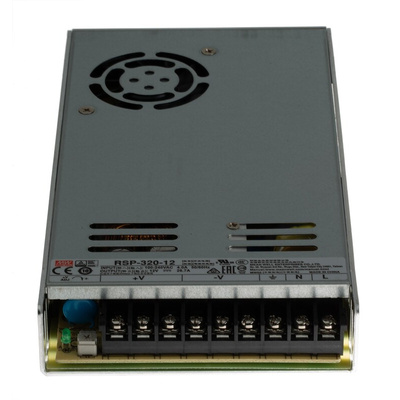

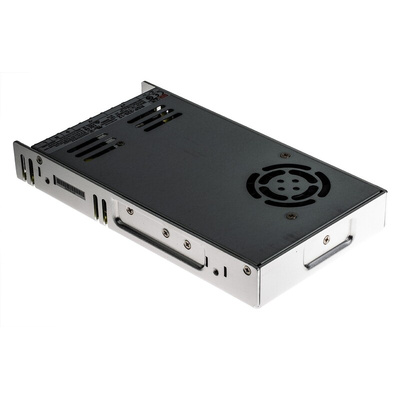

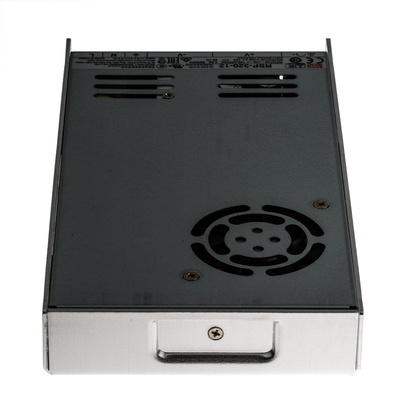

Mean Well Switch Mode Power Supply

The Mean Well RSP-320 series 320.4W single output AC to DC embedded switch mode power supply has an output current rating of 26.7A at 12VDC. It has a universal input supply voltage rating from 88VAC to 264VAC and 124VDC to 370VDC. The power supply is 40% smaller as compared to the corresponding models. The ambient temperature ranges from 30°C and 50°C under full load conditions and up to 70°C considering suitable derating.
.

Features and Benefits

Low profile, 30mm design for 1U installation
Built-in active PFC function
high-efficiency up to 90%
Forced air cooling by built-in DC fan
Short circuit protection
Overload protection
Overvoltage and over temperature protection
LED indicator

Applications

Industrial control system
Mechanical
Electrical industry
Instruments
LED display or any systems require low profile installations
•

Certifications

UL60950-1
CUL60950-1
TUV60950-1
CB approved
CCC approved
EN55032 (CISPR32) class B
EN61000-3-2,-3
GB9254 class B
GB17625.1

RSP-320 Series specification sheet

Declaration Of Conformity
