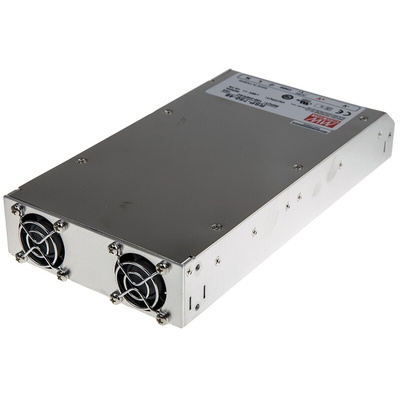

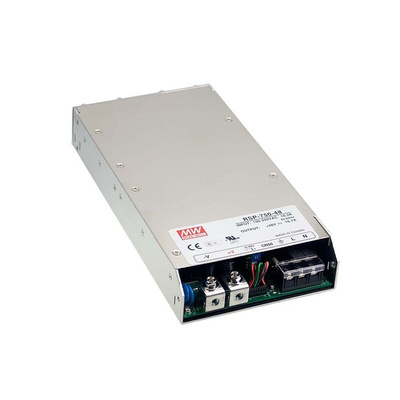

MEAN WELL Switching Power Supply, RSP-750-48RS, 48V dc, 15.7A, 753.6W, 1 Output, 127 → 370 V dc, 90 → 264, Источник питания

Mean Well Switch Mode Power Supply

The Mean Well RSP-750 series 753.6W single output AC to DC embedded switch mode power supply has an output current rating of 15.7A at 48VDC. It has a universal input supply voltage rating from 90VAC to 264VAC and 127VDC to 370VDC. It makes the AC/DC miniature industrial product more complete with his 42% smaller size. The ambient temperature ranges from -30°C and 50°C under full load condition and up to 70°C considering suitable derating.

Features and Benefits

Low profile, 41mm design for 1U installation
Built-in active PFC function
high-efficiency up to 92%
Output voltage can be trimmed between 40 to110% rated value by adding 2VDC to 5.5VDC of external control voltage
Output current can be trimmed between 40 to 110% rated value by adding 2VDC to 5.5VDC of external control voltage
Remote ON/OFF control and remote sense
Built-in 12V at 0.1A auxiliary output
DC OK signal output (TTL signal)
Forced air cooling by built-in DC fan
High power density is 9.5W/in3
Short circuit protection
Overload protection
Overvoltage and over temperature protection
Fan alarm

Applications

Industrial control system
IC testing equipment
Instrumentation
Telecommunication
Data storage
Laser-carving machine
Charging system and in general all applications that require high rating of wattage supply

Certifications

EN55032 (CISPR32) / EN55011 (CISPR11)
EN55032 (CISPR32) / EN55011 (CISPR11)
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
UL approved
CUL approved
TUV approved
CB approved
CE approved

RSP-750 Series specification sheet

Declaration Of Conformity
