384064, ERNI ERNIPRESS 64 Way 2.54mm Pitch, Type C Class C2, 3 Row, Right Angle DIN 41612 Connector, Plug, Разъем

Type C, Through Hole Reflow

This range of Type C through hole reflow DIN41612 / IEC 60603-2 Backplane / Board to Board / Wire to Board Connectors covers different connection variations. The design of these Backplane connectors is in accordance with DIN 41612/ IEC 603-2, for use in 19 in. Eurocard plug-in systems providing excellent quality and reliability. Applications for these DIN41612 / IEC 60603-2 connectors include:
Connection between plug-in cards and backplane wiring
Connection between two PCB's arranged one above the other
As a peripheral connector for external interfaces of the wiring plane

Max soldering temperature 10 sec at 260°C
64 pin (ac rows) and 96 pin (abc rows)

Standards

DIN EN 60603-2 (DIN 41612), IEC 60603-2

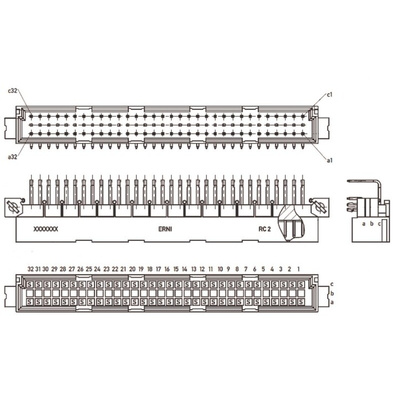

DIN 451612 Connector Type C Customer Drawing
