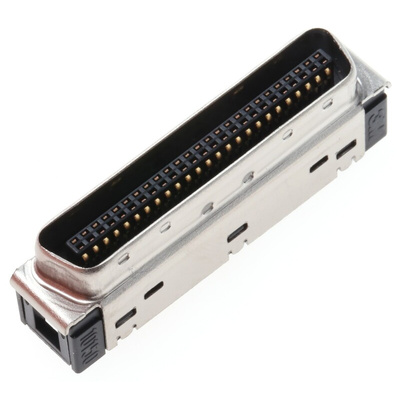

10150-6000EC, 3M 101 50 Way Cable Mount D-sub Connector Plug, 1.27mm Pitch, Разъем

IDC Wiremount Plugs (MDR) Shielded

From 3M, this range of 101 Series Mini D Ribbon (MDR) Connectors are .050" IDC Wiremount Shielded Plugs. The design of the 101 Series Mini D Ribbon (MDR) Connectors, provides IDC terminations for the individual cores and wiper-on-wiper contact. The 101 Series MDR Wiremount Plug accepts various cable constructions including round, flat, twisted pair and twinax.

Features and Benefits:

• Can be used in conjunction with metal backshells series stock no. 163-3358 and stock no. 194-2949 typical
• Excellent EMI/ESD protection
• Mates with PCB receptacle stock no. 499-9752 typical

The 3M range of IDC Wiremount Plugs includes:

• 101xx-6000Ex = Gold Flash over Ni IDC plating
• 101xx-6000xL = Contact area Au 0.2 μm, Tail area Au flash with lubricant treatment
• 101xx-6000xC = Contact area Au 0.7 6 μm, Tail area Au flash
• 101xx-6x0xxx = Black cover
• 101xx-6x1xxx = Gray cover

What are D-Sub Connectors used for?

D-sub connectors are used in a variety of electronics applications, and are frequently found in heavy duty computing systems such as in hospital equipment and industrial computers. They are also common in personal and office computing systems.

They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Note

See 3M IDC ribbon cable – typically stock no.120-8413. Dedicated tooling is also available – see stock no. 120-6962 and range.

3M Cable Mount D-Sub Connector Plug, 50 Way, 1.27mm Pitch - 101 Series - 10150-6000EC

This 3M cable mount D-sub connector is a practical way to establish connections in and between electronic applications. The connector accepts different cable constructions including flat, round, twisted pair and Twinax cables. It's shielded against electromagnetic interference and electrostatic discharge to protect both your internal wiring and components adjacent to the connector. Use this product to orientate and align your connections for steady and unbroken power and data transmissions.

• Compliance with UL 94V-0 (Underwriters Laboratories) indicates the connector won't act as an ignition or fuel source should a fire break out• Withstands temperatures between -20°C to +85°C for use in challenging industrial environments • Gold-plated contacts ensure excellent thermal and electrical conductivity for optimal functioning• Steel housing material for durability and long service life

Applications

• Media and communications centres• Office computing systems• Home entertainment systems

Do I need a crimper or other tools to terminate my connections?

This 3M cable mount D-sub connector comes with IDC (insulation displacement connection) termination. This means that the wires won't need stripping, soldering or crimping.

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.
