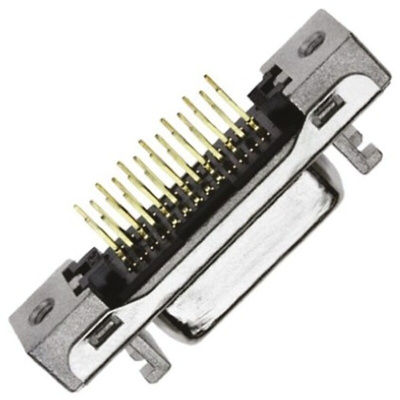

10236-6212PC, 3M MDR 102 36 Way Through Hole D-sub Connector Socket, 1.27mm Pitch, Разъем

Straight Panel Mount Through Hole Receptacles 102 Series with Screw Locks

These 3M Mini D Ribbon (MDR) 102 Series PCB shielded receptacles have M2.5 or M2.6 lockdown threads. The design of these MDR 102 Series PCB shielded receptacles incorporates a latching interface for connector stability.

Compatible Connectors:

Mates with 101XX-6000 Series Plugs see stock number 163-3285 typical
Mates with 101XX-3000 Series Plugs see stock number 515-7476 typical

Available in this range:

N102xx-xxxxxx: High temperature PCT insulator
x102xx-xx0xxx: M2.6 Panel and Screw locks
x102xx-xx1xxx: M2.5 Panel and Screw locks
x102xx-xxxxPC: Contact area Au 0.7 6 μm, Tail area Au flash
x102xx-xxxxPL: Contact area Au 0.2 μm, Tail area Au flash with lubricant treatment

• 749-4847 is a 14 way Through Hole D-Sub Connector Socket
• 749-4853 is a 80 way Through Hole D-Sub Connector Socket
• 749-4856 is a 26 way Through Hole D-Sub Connector Socket
• 749-4859 is a 50 way Through Hole D-Sub Connector Socket
• 770-9161 is a 36 way Through Hole D-Sub Connector Socket
• 770-9186 is a 68 way Through Hole D-Sub Connector Socket

What are D-Sub Connectors used for?

D-sub connectors are used in a variety of electronics applications, and are frequently found in heavy duty computing systems such as in hospital equipment and industrial computers. They are also common in personal and office computing systems.

They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Note

The Pitch quoted refers to the PC tails.

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.

MDR Boardmount Vertical Receptacle - Shielded Datasheet
