1553TBK, Hammond 1553 Series Black Flame Retardant ABS Handheld Enclosure, , IP54, 210 x 100 x 32mm, Корпус

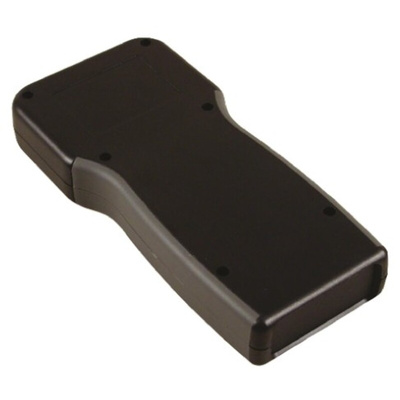

Hammond 1553 Soft Sided Handheld Enclosure, T Shape

The Hammond T shape enclosure with soft sides is ergonomically designed for handheld comfort and is ideally suited to house instrument or mobile data applications that require a keypad and display. This handheld case is moulded from flame retardant ABS plastic and carries a UL flammability rating of 94V-0. Available with either a black, RAL 9011 colour housing or a grey, RAL 7035 colour housing.

Both the display and keyboard areas are recessed for membrane devices
Moulded from flame retardant ABS plastic, choice of black (RAL 9011) or grey (RAL 7035) - material carries a UL flammability rating of 94V-0.
Handheld section of enclosure has a dark grey (RAL 7012) soft sided plastic grip
Enclosure is assembled with M3-0.5x18mm Philips machine screws, threaded into integral brass bushings.
Integral brass bushings are factory inserted into top half of the enclosure
Lap joint construction provides protection against access of dust and splashing water, IP54
PCB mounts are moulded into the top and bottom halves of the case
Available with or without a battery door/compartment

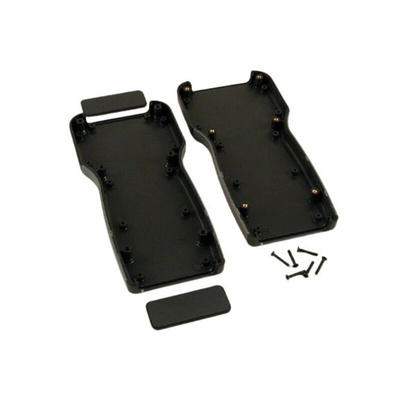

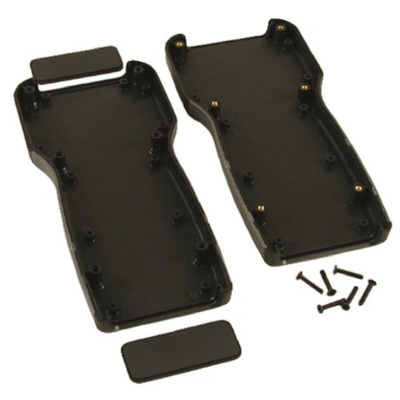

Contains either one or two removable end panels for easy modification
Bottom half of enclosure has a moulded label recess on the back, 56x42mm

Note

Stock nos. 770-9344 and 770-9335 have a battery door (compartment accepts either four AA batteries or one 9 volt PP3 battery). Stock nos. 770-9331 and 770-9338 have a removable bottom end panel as well as a removable top end panel.

Hammond 1553 Series Handheld Enclosure, Flame Retardant ABS, Black - 1553TBK

This handheld enclosure by Hammond is a versatile solution for professionals in the automation, electronics, electrical, and mechanical industries. The enclosure boasts a durable construction of flame retardant ABS material, featuring PCB mounting bosses for easy installation. With an IP54 rating, this black enclosure ensures protection against dust and splashing water, making it ideal for various applications.

Features & Benefits

• Constructed with flame retardant ABS material for enhanced safety and durability
• Designed with PCB Mounting Bosses for easy and secure installation
• IP54 enclosure rating provides protection against dust and splashing water
• RoHS compliant, ensuring environmental friendliness
• Keypad recess for added convenience during operation
• Lightweight design weighing only 200g for easy handling and portability

Applications

• Perfect for housing electronic components in Industrial automation systems.
• Ideal for creating handheld control devices in the electrical industry.
• Suitable for enclosing sensitive equipment in the electronics sector.
• Great for developing compact mechanisms in the mechanical field.

Can it withstand harsh environmental conditions?

Yes, the Hammond handheld enclosure with IP54 rating is designed to provide protection against dust and water splashes, making it suitable for challenging environments.

Is it easy to install the PCB in this enclosure?

Yes, the enclosure comes with PCB mounting Bosses, ensuring a secure and hassle-free installation process.

Will it fit various electronic components?

The Hammond handheld enclosure is versatile and can accommodate a wide range of electronic components due to its spacious design.

Can this enclosure be customised for specific requirements?

Yes, Hammond offers factory modification services for milling, drilling, printing, and more. Contact the factory for quotes on customised enclosures.

Is this enclosure lightweight for handheld applications?

Yes, weighing only 200g, this enclosure is lightweight and perfect for handheld devices in various industries.

PCB Stand offs moulded into base and lid. Top cover is recessed for membrane display or keypad. Removable end panels for easy machining

Standards

Material Flamability Rating: UL94-V0

Soft sided T shape enclosure, Drawing

Datasheet

Datasheet - 1553TBK
