1553TBKBAT, Hammond 1553 Series Black Flame Retardant ABS Handheld Enclosure, Integral Battery Compartment, IP54, 210 x 100 x 32mm, Корпус

Hammond Handheld Enclosure, 210 (L) x 100 (W) x 32mm (H), 92.22mm Maximum PCB Length, Black Colour - 1553 Series - 1553TBKBAT

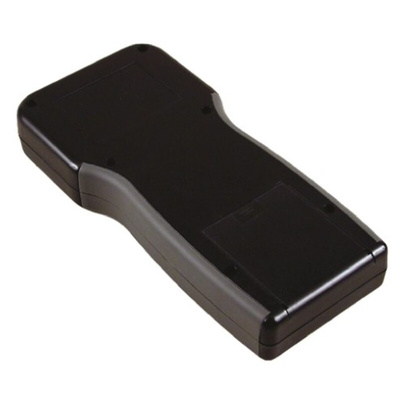

Are you looking for a handy case to hold your mobile device? Grab this handheld enclosure from Hammond. It has two recessed areas, making it a cinch to add a display and a large keypad. Thanks to the removable top-end panel, you can install an IR light or sensor and use this component as a remote control. The integrated PC board standoffs give your 134 (W) x 92.22mm (L) PCBs a secure place to rest while leaving enough room for wiring.

Features & Benefits

• Integral brass bushings shrug off damage, even with regular screw tightening
• Lap-joint construction seals out dust and moisture to an IP54 standard to suit use in contaminated environments
• Ergonomic T-shaped design is comfortable to hold

Applications

• Automotive industry
• Processing systems
• Supermarket refits

Does this enclosure come with a battery section?

Yes, there's a designated space for four AA batteries or one 9V battery, making it ideal for devices that need portable power.

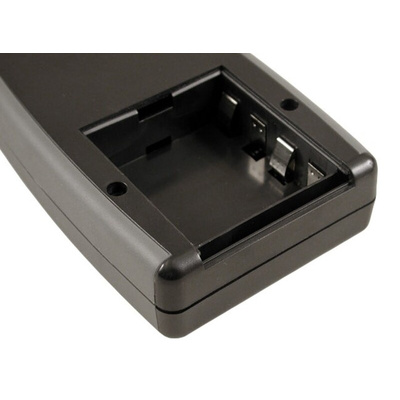

How do I access the batteries?

Accessing the batteries is the simple matter of quickly sliding off the enclosure's three-point battery door with your thumb and replacing it again when you're done.

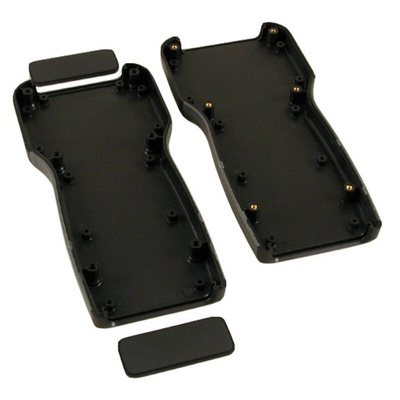

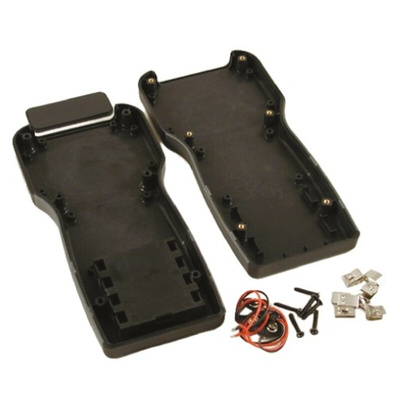

PCB Stand offs moulded into base and lid. Top cover is recessed for membrane display or keypad. Removable end panels for easy machining

Standards

Material Flamability Rating: UL94-V0

Soft sided T shape enclosure, Drawing

Datasheet

Datasheet - 1553TBKBAT
