1599TABLBK, Hammond 1599 Series Black Flame Retardant ABS Handheld Enclosure, , IP54, 240 x 190 x 30mm, Корпус

Hammond 1599 Handheld Enclosure, Tablet

The Hammond Tablet enclosure with its low profile is ergonomically designed for handheld comfort and is ideally suited to house instrument or mobile data applications that require a touch screen. This handheld case is moulded from flame retardant ABS plastic and carries a UL flammability rating of 94V-0. Available with either a black, RAL 9011 colour housing or a grey, RAL 7035 colour housing.

Features and Benefits

Both the display and keyboard areas are recessed for membrane devices
Moulded from flame retardant ABS plastic, choice of black (RAL 9011) or grey (RAL 7035) - material carries a UL flammability rating of 94V-0.
Handheld section of enclosure has a dark grey (RAL 7012) soft sided plastic grip

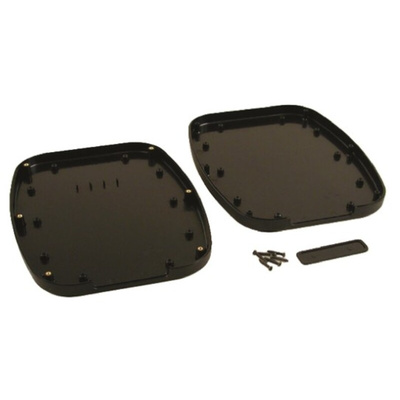

Enclosure is assembled with six M3-0.5x18mm Philips machine screws, threaded into integral brass bushings.
Integral brass bushings are factory inserted into top half of the enclosure
Lap joint construction provides protection against access of dust and splashing water, IP54
PCB mounts are moulded into the top and bottom halves of the case
Available with or without a battery door/compartment
Contains one removable end panel for easy modification
Bottom half of enclosure has a square moulded inlay for labels, 50x50mm

(IP) Ingress Protection and what it means

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

FAQ's

Can the enclosure be used outside?

This enclosure holds some waterproof qualities, but not enough to be used outside being IP54.

Note

Stock nos. 770-9350,770-9353, 818-0533 & 818-0542 have a battery compartment, accepts either four AA batteries or one 9 volt PP3 battery.

Hammond 1599 Series Handheld Enclosure, Flame Retardant ABS, Black - 1599TABLBK

This Hammond handheld enclosure is a compact and durable solution for various applications in automation, electronics, electrical, and mechanical industries. The ABS body material ensures flame retardancy, while the black colour provides a sleek finish. With features like PCB mounting bosses, an IP54 rating, and RoHS compliance, this enclosure is designed to meet the needs of professionals in demanding environments.

Features & Benefits

• Sturdy ABS body material for flame retardancy
• Sleek black colour for a professional appearance
• PCB mounting bosses for secure installation
• IP54 rating for protection against dust and water ingress
• RoHS compliance for environmentally friendly operations

Applications

• Ideal for housing electronic components in Industrial automation systems
• Suitable for equipment used in electrical control panels
• Perfect for protecting sensitive devices in mechanical instruments

Can it withstand harsh industrial environments?

Yes, the Hammond handheld enclosure is designed to withstand harsh industrial environments with its flame retardant ABS material.

Will it provide secure mounting for PCBs?

Yes, the enclosure features PCB mounting bosses for secure installation of printed circuit boards.

Is it suitable for outdoor applications?

Yes, the IP54 rating ensures protection against dust and water ingress, making it suitable for outdoor use.

Can it accommodate devices with keypad recess?

Yes, the enclosure is equipped with a keypad recess for easy access to buttons and controls.

Will it meet the environmental standards?

Yes, the enclosure is RoHS compliant, ensuring adherence to environmental regulations.

PCB Stand offs moulded into base and lid. Top cover is recessed for membrane display or keypad. Removable end panels for easy machining

Standards

Material Flamability Rating: UL94-V0

Low profile Tablet enclosure, Drawing

Datasheet

Datasheet - 1599TABLBK
