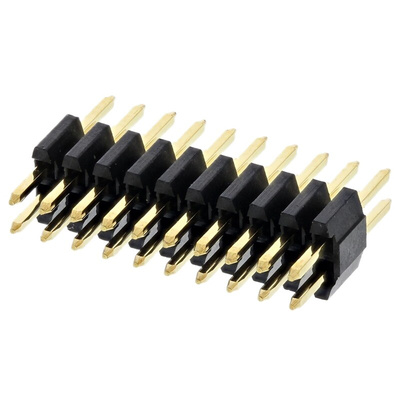

20021111-00020T4LF, Amphenol ICC Minitek127 Series Straight Through Hole Pin Header, 20 Contact(s), 1.27mm Pitch, 2 Row(s), Unshrouded

MINITEK Unshrouded Header Through Hole

These FCI MINITEK127 Unshrouded Headers are of Through Hole design. The Pins of these MINITEK127 Unshrouded Headers are 0.4 mm square with a 3 mm contact length with 0.25 μm Gold plating and 2.35 mm solder length with Gold Flash plating, housing thickness is 2.50 mm. The MINITEK127 Unshrouded Headers are end-to-end stackable.

Note

Mates with MINITEK127 Board to Board Receptacles see typical stock numbers:
771-0237 , Through Hole
714-1234 , SMT

The FCI MINITEK 127™ 1.27mm Connector System contains an extensive modular range of connectors for all types of wire to board and cable to board applications. It includes straight and right angle, surface mount and through mount and different plating variations. The FCI MINITEK 127™ 1.27mm Connector System is not a proprietary system and is therefore intermateable with other common designs. Housed in high-temperature, black thermoplastic, the MINITEK 127™ series features a flammability rating of UL 94 V-0 and an operating temperature range from -40ºC to +85ºC. The electrical current rating is 1 A continuous and the voltage rating is up to 125V.

Minitek 1.27 mm Header Through Hole - Drawing
