NO2-4FDW-A, Neutrik, opticalCON, LC, APC, PC Multimode, Single Mode Duplex Fibre Optic Connector, 0.5dB Insertion Loss, Разъем

Neutrik Fibre Optic Connector

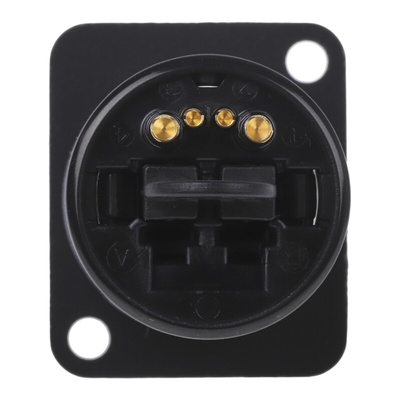

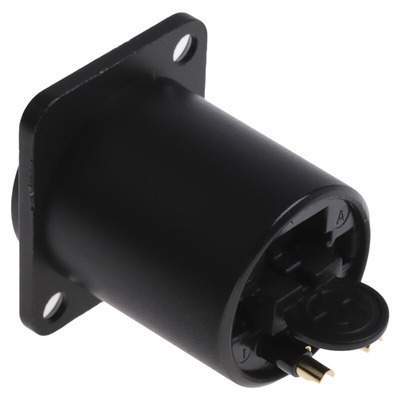

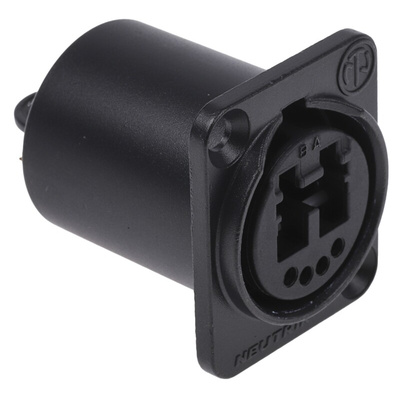

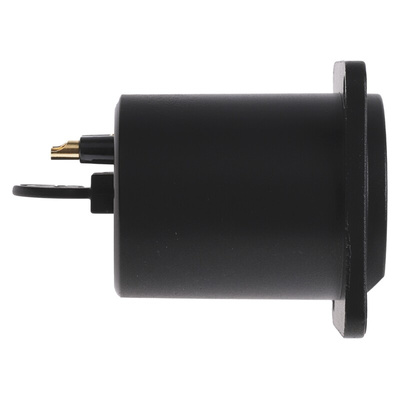

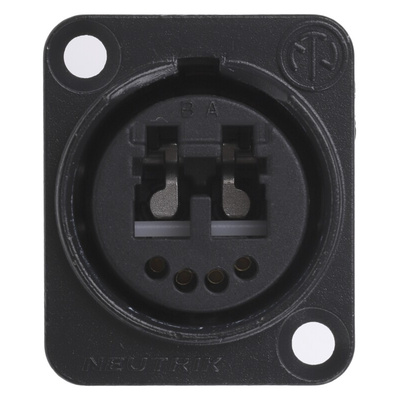

The Neutrik OpticalCON series female chassis connector with black chromium plating has 4 solder contacts and 1 LC-Duplex feedthrough socket. It acts as a "feed-through" allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.

Features and Benefits

A viable alternative to traditional connectors in fixed installations
Connection on the front side either by rugged OpticalCON or standard LC connector
In case of limited space, the chassis can be mounted without a rubber gasket (IP52)
Operating temperature ranging between -40°C and 75°C
Shutter and silicone gasket protects optical connection from dust and dirt
Suggested OEM equipment connector due to LC front compatibility
Colour coding with SCDP is given as multimode-black, single mode PC-blue and single mode APC-green
Insertion loss of <0.4 dB
Water resistant

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP52 rated
