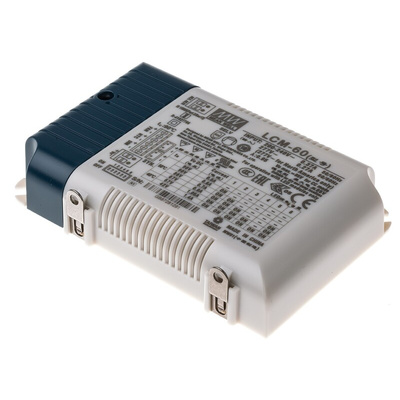

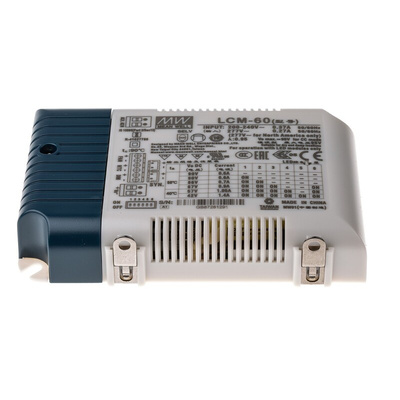

LCM-60RS, MEAN WELL LED Driver, 2 → 90V Output, 60.3W Output, 1.05 A, 1.4 A, 500 mA, 600 mA, 700 mA, 900 mA Output,, Драйвер светодиодов

60W Multiple-Stage Output Current LED Power Supply LCM-60 Series

This LED driver is a 60W multiple-stage output current LED power supply with built-in push dimming function. The series have built-in active PFC function, protections including short circuit, over voltage and over temperature. Fully isolated in a plastic case with strain relief design the unit is suitable for LED lighting applications.

Output current level selectable by DIP Switch
180∼295V ac input only
Built in active PFC function
Protection for short circuit, over voltage and over temperature
Cooling by free air convection
Fully isolated plastic case
Class II Power unit, no FG
Built in 0∼10Vdc and PWM signal dimming function
Built in 12V/50mA auxiliary output
Temperature compensation function by external NTC
No load power consumption <1W
Power supplies synchronization function up to 10 units
Suitable for LED lighting applications
3 years warranty
