LCM-40DA, MEAN WELL LED Driver, 2 → 100V Output, 42W Output, 1.05 A, 350 mA, 500 mA, 600 mA, 700 mA, 900 mA Output,, Драйвер светодиодов

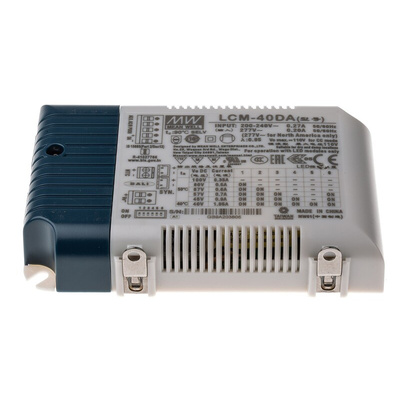

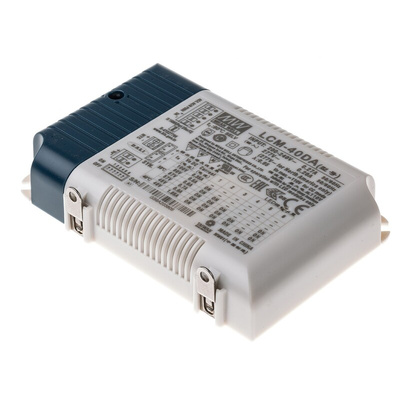

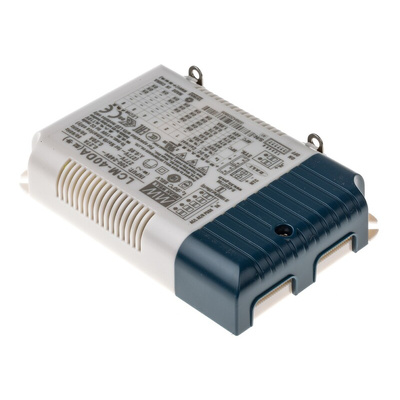

40W Constant current LED Power Supply LCM-40DA series

The LCM-40DA LED driver is a 40W multiple-stage output current LED power supply with built-in DALI interface. The series have built-in active PFC function, protections including short circuit, over voltage and over temperature. Fully isolated in a plastic case with strain relief design the unit is IP20 rated and is suitable for LED lighting applications.

Output current level selectable by DIP Switch
180∼295V ac input only
Built-in active PFC function
Protections: Short circuit / Over voltage / Over temperature
Cooling by free air convection
Fully isolated plastic case
Class II power unit, no FG
Built-in DALI interface and push dimming function
Built-in 12V/50mA auxiliary output
IP20 design
Temperature compensation function by external NTC
No load power consumption <1W
Power supplies synchronization function up to 10 units
Suitable for LED lighting applications
3 years warranty

Mean Well LED Drivers, Constant Current

LCM-40DA Series 40W Multiple-Stage Output Current LED Power Supply Data Sheet
