73412-0280, Molex 73412 Series Male U.FL to Male U.FL Coaxial Cable, 65mm, RF Coaxial, Terminated, Кабель

Molex Male U.FL to Male U.FL RF Coaxial Cable

From Molex comes the male to male U.FL coaxial cable. With an impedance rating of 50 Ohms, this range of high-quality cables provides customers with an excellent and essential solution for a variety of cable connection needs.
These RF (radio frequency) coaxial cables come in varieties of lengths, please see a list of alternative options below.

1617938 (Mfr. Part No. 73412-0508) - 50mm length
1676493 (Mfr. Part No. 73412-0231) - 110mm length
1676495 (Mfr. Part No. 73412-0502) - 110mm length
7031341 (Mfr. Part No. 73412-0231) - 110mm length
7031345 (Mfr. Part No. 73412-0232) - 65mm length
7031354 (Mfr. Part No. 73412-0237) - 240mm length
7719136 (Mfr. Part No. 73412-0280) - 65mm length
7719142 (Mfr. Part No. 73412-0502) - 110mm length
7719149 (Mfr. Part No. 73412-0508) - 55mm length

Counterparts for PCB:
702-5429 (Mfr. Part No. 73412-0114)
702-5425 (Mfr. Part No. 73412-0110)

Features

• 0.81mm Cable Diameter


• Dual-Ended Connectors


• Material - Phosphor bronze


• Gold Plating Mating

Applications

These cables have a multitude of applications such as:

• Connecting radio transmitters and receivers to antennas,


• Connecting broadband routers to the supplier network,


• Feeding signals through to your television.

What is Impedance?

Impedance is an electric current’s opposition being measured when the voltage has been applied.

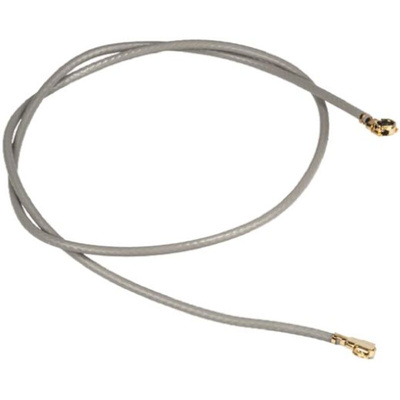

Molex Male U.FL to Male U.FL Coaxial Cable, 50Ω Impedance, 65mm Length - 73412 Series - 73412-0280

Use this micro coaxial cable assembly from Molex to transmit RF (radio frequency) signals on your circuit boards. With an outer diameter of 0.81mm, it's a compact solution for applications that require an RF antenna but have limited space. Phosphor-bronze contacts on both ends of the cable are highly conductive and make for a reliable connection. The cable itself is made of PBT (polybutylene terephthalate) material that not only resists impact but also serves as an insulator and protects you from electric shocks.

• Compact length of 65mm is suitable for use in small spaces
• Contacts are gold-plated for resistance to corrosion
• Low weight of 0.12g means it's easy to handle and won't put strain on your circuit board
• Transfer speed of up to 10Mbps (megabits per second) for rapid transmission of signals

Applications

• Networking and telecommunications
• Home entertainment systems
• Personal IT equipment

What is impedance?

Impedance is a measure of the opposition to electrical flow, measured in ohms (Ω). This coaxial cable has a low impedance of 50Ω meaning it can offer speedy signal transmission.

Microcoaxial, Ultra-Microminiature Connectors

These Molex Microcoaxial connectors are very small, cost effective, RF connectors that are compatible with U.FL® connectors. The cable mount right angle plug is only available terminated as a full cable assembly.

Microcoaxial RF UFL to UFL Cable Assemblies - Drawing

Datasheet
