503300-4110, Molex, Easy-On 0.25mm Pitch 41 Way Right Angle Female FPC Connector, Top Contact, Разъем

Molex Easy-On FFC/FPC Connectors, 503300 Series

The Molex Series 503300 range of 0.25 mm pitch FPC Connectors feature the robust Easy-On Front-Flip actuator. The spring-terminal design of these Series 503300, 0.25 mm pitch FPC Easy-On Connectors provides increased contact reliability under shock and vibration. The Top Contact style of these Series 503300, 0.25 mm pitch FPC Easy-On Connectors allows the FPC cable to be wrapped under the board to a bottom contact style. The 3.20 mm depth by 1.2 mm above board height of these Series 503300, 0.25 mm pitch FPC Easy-On Connectors saves space on the PCB. The ZIF design of the Series 503300, 0.25 mm pitch FPC Easy-On Connector allows easy insertion of standard 0.20 mm thick FPC cable. The footprint pattern (with solder tabs for increased PCB retention) and pitch tolerance are the same as other Molex 0.25 mm pitch connectors giving commonality to other connector styles without the need for PCB layout changes.

0.25mm FPC - Molex Easy-On Connectors

0.25 mm Pitch FPC Easy-On Connector - Drawing

0.25 mm Pitch FPC Easy-On Connector Datasheet

0.25 mm Pitch FPC Easy-On Connector - Brochure

Datasheet

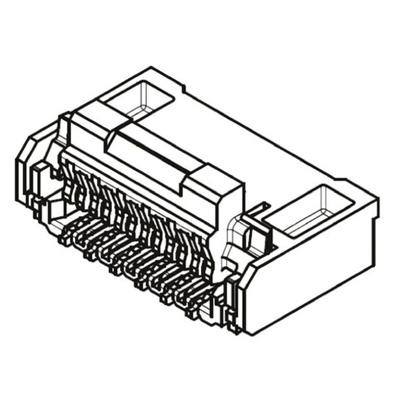

Line Drawing
