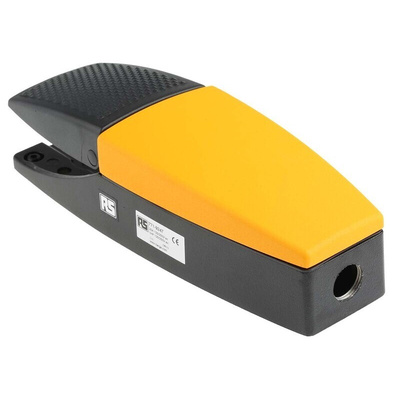

RS PRO Momentary Heavy Duty Foot Switch - Die Cast Aluminium Case Material, DP-CO, 21 A Contact Current, 250V Contact, Ножной выключатель

7719247
Производитель: RS PRO
Цена за шт.
107607.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO Heavy Duty Un-guarded Foot Switches

RS PRO rugged heavy duty foot switches which are ideal for industrial applications. They are manufactured from die-cast aluminium and have been designed for high performance and are excellent quality.

Foot switches are commonly used on large machinery were hand operated switches are a safety concern. This foot controller pedal is ideal for various applications.

RS PRO offers a range of footswitches and accessories to meet all your requirements. The range has been RS approved meaning great value for money and high-quality you can rely on.

This range of heavy duty foot pedal switches includes:
211-0698 – Momentary
771-9247 – Momentary - 5K potentiometer, DPCO, Snap action - at the start of pedal depression
771-9256 - Momentary - 10K potentiometer, DPCO, Snap action - at start of the pedal depression

Features and Benefits:

Industrial foot switch – both sturdy and durable
Positive break contacts open in the event of contact weld or broken spring
Average life expectancy 1x106 operations
Sealed to IP67 – protected from dust, and waterproof
Operating Temperature: -25°C to +60°C
Ergonomic design and long life expectancy
Yellow colour with a black base

Typical Applications

Foot switches are commonly used in applications where hands-free control is more practical or safer. They can be found on:
Industrial machinery and smaller power tools
Hospital beds
Dentist Chairs
Lamps

FAQs

What are the different types of switching options?
Switches are components that switch a circuit on or off by making contact or breaking contact, the two most common are:
Non-latching (Momentary) – this type of foot switch makes contact when you push it but breaks contact when you release it.
Latching (Maintained) – this type of foot switch needs to be pressed once for ON and again for OFF

Why would you use a footswitch?
As these switches are operated by the person’s feet, this means that their hands are free so therefore allows the individual to multitask.

Standards

EN60204-1/EN 60947-5-1

Техническая спецификация
pdfRS Pro Datasheet
Встречающиеся стандарты:
BEAB Approved, CE, CSA, DEMCO, EN 60730, EN 61058, IMQ, KEMA, NEMCO, OVE, SEMCO, SETI, SEV, UL, VDE
Высота:
155мм
Длина:
264мм
Защитная крышка:
Да
Конфигурация контактов:
DP-CO
Корпус материал:
Литой алюминий
Материал контактов:
Серебро
Номинальное напряжение контакта AC:
250В
Номинальное напряжение контакта DC:
220В
Номинальный ток контакта:
21 A
Работа выключателя:
Моментальный
Размеры:
264 x 163 x 155мм
Среда выключателя:
Heavy Duty
Степень защиты IP:
IP67
Цвет:
Желтый
Ширина:
163мм
