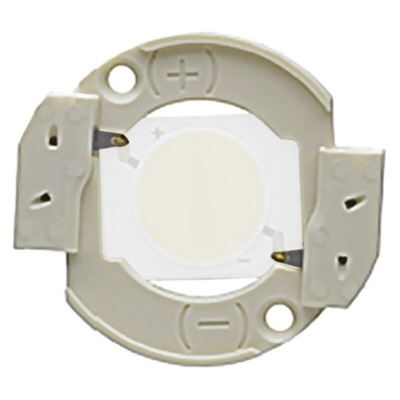

180330-0002, Molex CoB LED Holder for Sharp Mega Zenigata 40.8 (Dia.) x 44.48mm

Molex Sharp Zenigata LED Array Holders

The Molex LED Array Holders for Sharp Zenigata CoB's are ideal for OEM light-fixture manufacturers by simplifying the LED installation process and reduce installation time through the use of solderless compression contacts that eliminate the need for hand or SMT soldering and expensive SMT equipment. These LED Array Holders allow: CoB LED arrays to be quickly installed into fixtures, enable field replacements by use of releasable wire-traps and facilitate upgrades to current applications. Molex Sharp Zenigata CoB LED Array Holders are ideal for applications including: Architectural lighting, Area lighting and Down lighting.

Compression contacts to power array Gold plated
Double-ended wire-trap terminal to attach power source, suitable for wire size 18AWG or 20AWG
Releasable wire trap for rework or replacement for field serviceability
Screw-mount attachment of LED array and holder to heat sink using M3 or 4-40 screws
Provides voltage isolation between LED and heat sink
Stable connection in high-ambient temperature
Ideal for lamp and small-fixture applications, including MR16 or track lighting

Note

Stock number 771-9451 is supplied with a Cover which has Zhaga compliant optical interface.
