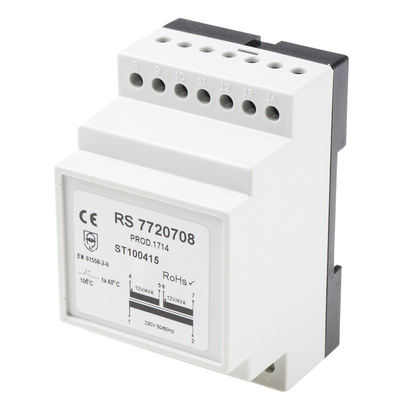

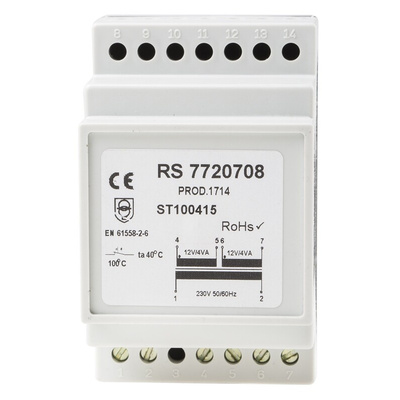

RS PRO 8VA DIN Rail Transformer, 230V ac Primary, 12V ac Secondary

RS PRO 8 VA DIN Rail Mount Transformer, 230 V AC Primary 2 x, 12 V AC Secondary

Need to step a continuous power load up or down to supply control circuits, switch relays or installation contacts? This transformer from RS PRO allows you to convert 230 V AC and use it to power equipment that runs on 12 V AC.
The isolating transformer separates the electrical device from the input power supply, guarding against electric shock. A Positive Temperature Coefficient (PTC) resistor protects the circuitry from overloads or short-circuits, while varnish impregnation on the coils boosts their dielectric strength and protects them from humidity and rust. A three-module enclosure houses the unit securely, with integrated screw terminals providing easy installation. The transformer can withstand a maximum operating temperature of +130˚C, so you can use it in a wide range of environments.
The device conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards, which protects circuitry against harmful static discharge. Transformers of this type are also commonly used to supply power to bells, gongs and door openers.

Features and Benefits

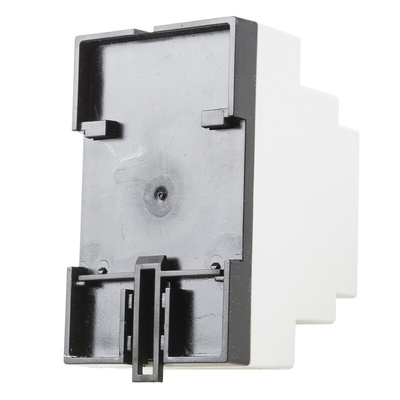

• DIN rail mounting
• Operating frequency of 50 to 60 Hz
• Power rating of 8 VA
• Length of 86 mm
• Width of 52.5 mm
• Depth of 58 mm

RS PRO Datasheet
