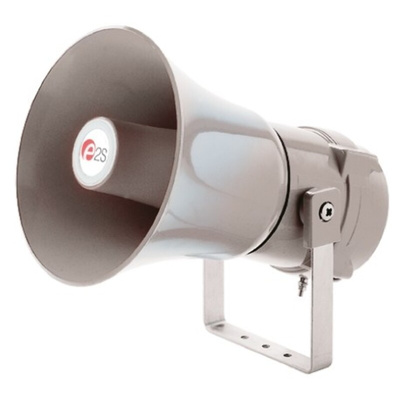

A131AC230G1, e2s Siren, 90 → 264 V ac, 131dB at 1 m, AC

e2S Warning Siren, A131 Series

The A131 is a compact and easy to install high output 131dB electronic siren which is ideal as a plant alarm to cover outdoor locations, areas with high background noise or smaller COMAH (Seveso II) applications that have sound coverage requirements of up to 300m. This alarm sounder offers a choice of three alarm stages, from a selection of 45 tones including many national standard tones. It can be incorporated in fire, security and general alarm systems where existing equipment is not powerful enough or the system needs expanding.

Features and Benefits:

Compact and easy to install high level audible warning system (horn unit & control panel are supplied)
High output 131dB(A) @ 1 metre
Choice of three alarm stages, from a selection of 45 tones
Speaker horn is suitable for pole or wall mounting
IP66 ingress protection
Pre-wired with 10m of cable for quick installation
Operating temperature of -20 to +55°C
Grey aluminium LM6 phosphate & powder coated body
Adjustable U bracket for mounting

Note

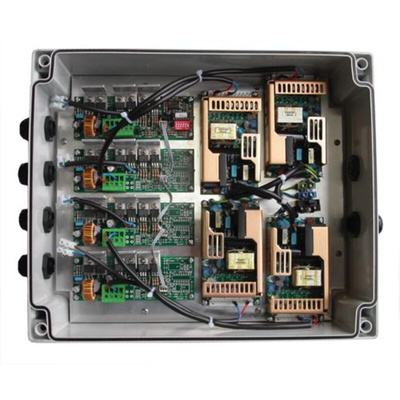

Both the horn and control box are supplied

Siren

Datasheet

Machine Guarding and Safety Range Overview

A131 Datasheet

Control Panel Drawing

Horn Drawing

A131 Manual
