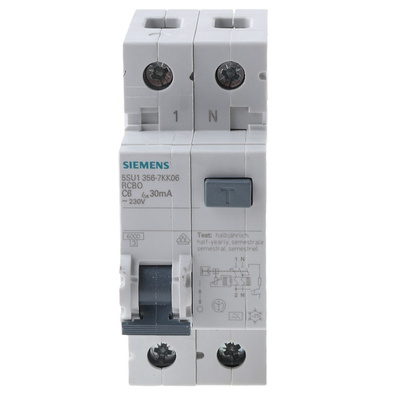

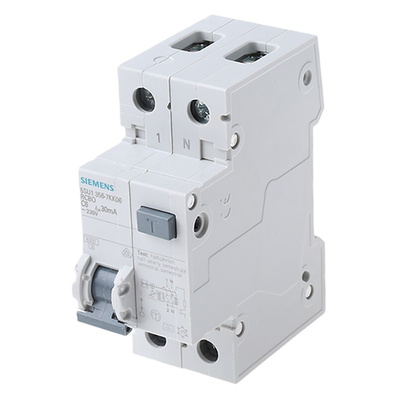

5SU1356-7KK06, Siemens RCBO, 6A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, Sentron Range, Автоматический выключатель

Siemens RCBO, DIN Rail Mounting, 230V AC Supply Voltage - SENTRON Series - 5SU1356-7KK06

Give electrical hazards the cold shoulder with this RCBO from Siemens. It can detect both fault-currents and overcurrents, and will automatically break the attached circuit when these occur. This protects people and equipment from the risk of fire and shocks. With a 6A current rating and a trip sensitivity of 30mA, it's well-suited to industrial environments and can be used in automation setups, production lines and mechanical engineering workshops. Standard DIN-rail mounting makes it quick and easy to install. The connectivity of the conductor can be conveniently checked at the front of the busbar.

• Residual current rating of 30mA for robust overcurrent protection
• Plenty of wiring space for insertion of a conductor
• 1P+N poles for enhanced protection
• Broad operating temperature range of -25°C to +55°C
• Delayed overload for low overcurrents and instantaneous electromagnetic release for short circuits

How big is this RCBO?

It has compact dimensions of 90(H) x 36 x (W) x 77mm (D), so it's suitable for applications where space is at a premium.

Does this product contain halogen?

No, it's halogen-free for enhanced fire safety.

RCBO 1P+N Pole Type A 30mA 6kA C 6A Data Sheet

Catalogue - Current Protective Devices

Siemens EcoTech label
