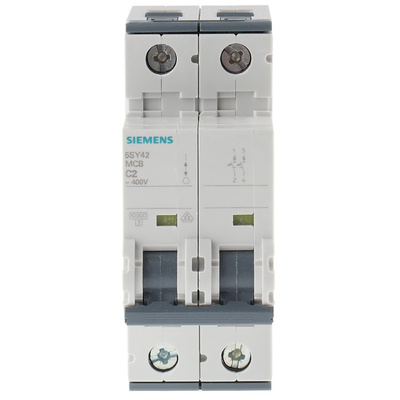

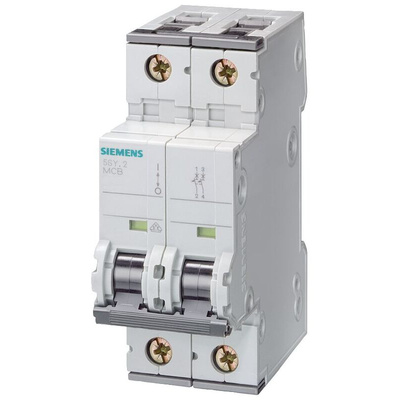

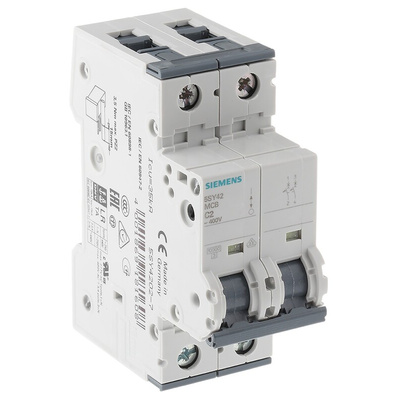

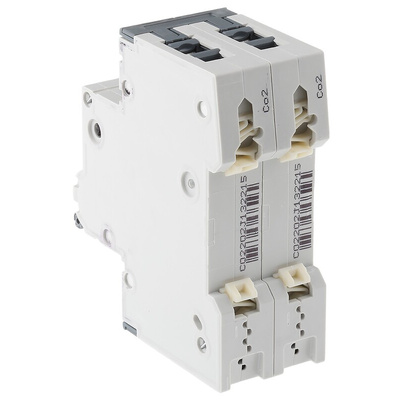

5SY4202-7, Siemens Sentron 5SY4 MCB, 2P, 2A Curve C, 400V AC, 400V DC, 10 kA Breaking Capacity

Siemens MCB, DIN-Rail Mounting, 36mm Width - SENTRON 5SY4 Series - 5SY4202-7

Stop rogue current flow in its tracks with this Siemens MCB. It's designed to automatically interrupt a circuit when an overload or short circuit occurs, protecting your equipment from damage. The unit has a 2-pole configuration, so it's suitable for protecting either two 120V circuits or a single 240V circuit. You can install it easily by clipping it onto a DIN rail beside the electrical appliances you want to protect. It's a versatile option for industrial, manufacturing and engineering settings. You can also use it to take care of electrical safety in residential buildings.

Features & Benefits

• Wide operating temperature range between -25°C and +55°C for use in harsh conditions
• Compact dimensions of 36 (W) x 90 (H) x 76mm (D) take up minimal space on a packed DIN rail
• Can be combined with components such as shunt releases and remote operating mechanisms for greater functionality

What type of tripping curve does this MCB have?

It's a type C circuit breaker, meaning it instantly trips if there are current surges 5 to 10 times the rated current of 2A. This high surge capacity makes it suitable for heavy-duty commercial applications.

MCB 2 Pole Type C 10kA 2A 400V Data Sheet
