FLASHBIOS, Low-Cost Universal Programmer for EPROM/EEPROM/Flash, with USB

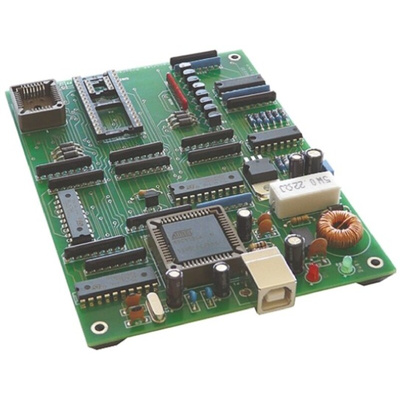

The FlashBios is a device Reader/Programmer/Copier supporting CMOS EPROMs (2716 to 27C801 family) of 16Kb to 8Mb, parallel EEPROMs (28C16 to 28C040 family) up to 4Mb, parallel FLASH memory (28xxx, 29xxx, 37xxx, 39xxx, 49xxx, etc) of 512Kb to 8Mb, I²C and SPI EEPROMs memory (24Cxx, 25Cxx) and SPI FLASH memory (25Fxxxx) until 256Mb. It is equipped with a LED indicating the different status of the programmer, a USB port, a high quality tulip socket supporting devices in DIP packages of 8, 24, 28 or 32 pins and a PLCC32 socket supporting any 32-pin FLASH memory. The FlashBios connects to the USB port of any compatible PC and does not require any external power supply which makes it very practical to use at the office or on a business trip. Its integrated supply runs all the devices requiring a supply of 2.5V / 3.3V / 5.0V / 12V / 12.5V / 13V / 21V and 25V. New 32-pin devices can be added to the software list on request and the updates can be downloaded freely from our website. The software works with Windows 98/ME/2000/XP/Vista/Windows7 (32-bit and 64-bit).

Accepts standard file formats: BINARY, INTEL (Extended) HEX, INTEL HEX16, Motorola S19/S28/S37 records
Read / Write / Blank-Check Write / Verify / Blank-Check / Erase functions
Support low voltage devices from 2.5V to 5.0V
Support high Vpp programming voltage: 12V / 12.5V / 13V / 21V / 25V
No need of exterior adapter for all DIP package devices : DIP8, DIP24, DIP28 and DIP32
PLCC32 adapter on board to program parallel FLASH memory
SPI connectors to program on board devices, (Gnd, Vdd, Vpp, DATA0, DATA1, DATA2, DATA3, DATA4, DATA5, DATA7)
Supports Windows 98 / ME / 2000 / XP / Vista / Windows 7 (32-bit and 64-bit) with 10MB of spare capacity
Dimensions board: 140 x 100 x 15 mm

Kit Contents

Programmer with tulip DIP8 and DIP32 package, PLCC32 and SPI connector
USB cable
Software on CD-ROM
