Seeit FlashBiosBox, Universal Programmer for FLASH Memory Devices

Seeit Universal Programmer

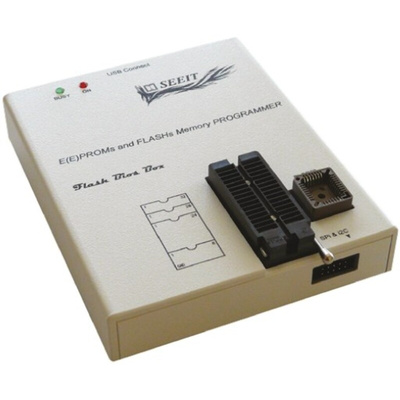

The Seeit universal programmer is a device reader/programmer/copier supporting EPROMs (2716 to 27C801 family) of 16KB to 8MB, parallel EEPROMs (28C16 to 28C040 family) up to 4Mb, parallel FLASH memory (28xxx, 29xxx, 37xxx, 39xxx, 49xxx, etc.) of 512KB to 8MB, I²C and SPI EEPROMs memory (24Cxx, 25Cxx) and SPI FLASH memory (25Fxxxx) until 256MB. It is equipped with an LED indicating the different status of the programmer, a USB port, a high-quality ZIF32 socket supporting devices in DIP packages of 8, 24, 28 or 32 pins and a PLCC32 socket supporting any 32-pin FLASH memory. The FlashBiosBox connects to the USB port of any compatible PC and does not require any external power supply, which makes it very practical to use at the office or on a business trip. Its integrated supply runs all the devices requiring a supply of 2.5V/3.3V/5.0V/12V/12.5V/13V/21V and 25V. New 32-pin devices can be added to the software list on request and the updates can be downloaded freely from our website. This software works with Windows 98/ME/2000/XP/Vista/Windows7 (32-bit and 64-bit).
Kit contents:
Programmer with ZIF32 socket, PLCC32 support an SPI connector
USB cable
Software on CD-ROM

Features and Benefits

Accepts standard file formats: BINARY, INTEL (Extended) HEX, INTEL HEX16, Motorola S19/S28/S37 records
Not need exterior adapter for all DIP package devices : DIP8, DIP24, DIP28 and DIP32 (ZIF32 socket)
PLCC32 adapter on board to program parallel FLASH memory
Read/Write/Blank-Check Write/Verify/Blank-Check/Erase functions
SPI connectors to program on board devices, (Gnd, Vdd, Vpp, DATA0, DATA1, DATA2, DATA3, DATA4, DATA5, DATA7)
Support high Vpp programming voltage: 12V/12.5V/13V/21V/25V
Support low voltage devices from 2.5V to 5.0V
Supports Windows 98/ME/2000/XP/VISTA/Windows 7 (32-bit and 64-bit) with 10MB of spare capacity

FlashBiosBox, Universal Programmer for EPROM / EEPROM / Flash Memories 27Cxxxx / 28Cxxxx / 28Fxxxx / 29Cxxxx / 29Fxxxx / 39Fxxxx / 49Fxxxx and for Serial EEPROMs and SPI Flash 24Cxxx / 25xxx / 25Cxxx / 25Lxxx / 95xxx on USB Port
