MULTIPIC, Universal Programmer for PIC Microcontrollers and Serial EEPROMs on USB

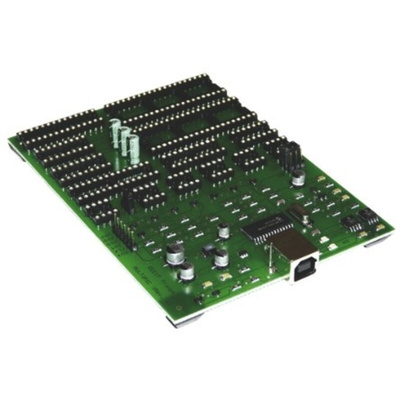

The MULTIPIC allows you to program over 650 different PIC microcontrollers from Microchip (PIC10Fxxx, PIC12Fxxx, PIC16Fxxx, PIC18Fxxx, PIC24Fxxx, PIC24Hxxx, dsPIC30Fxxx, PIC32MXxxx and dsPIC33Fxxx). The board includes different tulip sockets for various components in DIP with 8, 14, 18, 20, 28 and 40 pins. The SPI connector can program on-board components. Optional adapters can be added in SOT, DFN, SOIC, SSOP, QFN, TQFP standard packages. Also this programmer allows you to program serial EEPROMs for 24C/LC/AA/FCxxx, 25LC/AAxxx, 93C/LC/AAxxx and HCSxxx components. The MULTIPIC connects to the USB port of your PC, and does not require any external power supply. The software of MULTIPIC works under Windows XP/Vista/Windows 7 (32-bit and 64-bit) and equally the board is compatible with Microchip software.

Accepts standard file formats: JEDEC, INTEL (Extended) HEX, INTEL HEX16 and auto find format
Read / Write / Verify / Erase / Blank Check functions
Modify Vdd parameters: 2.5V to 5.0V
Auto detect device
Enable Code Protect and enable Data protect
Separate buffers to show Program memory and EEPROM data memory
Not need exterior adapter for all DIP package devices
SPI connectors to program on board devices, (AUX, CLK, DATA, VSS, VDD, VPP)
Switch available for 24Cxx (A0, A1, A2) and 93Cxx (8-bits or 16-bits)
Supports Windows XP / Vista / Windows 7 (32-bit and 64-bit) with 100MB of spare capacity
Board Dimensions 135 x 95 x 15 mm

Kit Contents

Programmer with several tulip DIP package sockets
USB cable
Software on CD-ROM
