Seeit PRESTO, Universal Programmer for AT, CC Series Microcontrollers, Memory Devices, MSP, PIC

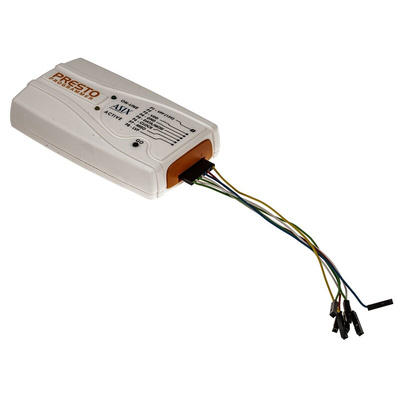

Seeit PRESTO Programmer

The Seeit PRESTO is a universal SPI programmer which enables quick and easy programming of a range of different microcontrollers (MCUs). The PRESTO module is compatible with Microchip PIC MCUs, AVR ATMEL MCUs and serial EEPROMs. A full list of compatible MCU devices can be found on the datasheet.
The Seeit PRESTO connects to your PC via USB and connects directly to the MCU device with the attached 7 wires. The PRESTO module connects to devices soldered on the PCB with special packages, without having to add any adapters. You do not require an external power supply either as the PRESTO is powered via your PC.
The “GO” button on the front of the PRESTO allows you to start programming quickly. The LEDs on the programmer indicate status, so you don’t require a PC, keyboard or mouse, if you wish.

• High speed programming
• Compatible with tonnes of MCUs
• “GO” button for quick programming
• Supports ICSP (In-Circuit Serial Programming) and ISP (In-System Programming)

What’s included?
Programmer
SPI cable
USB cable
Software (CD)
User Manual (English and French)

Operating System Requirements:
Windows 98SE/ME/2000/XP/Vista/7/8/10
Linux

Optional Adapters:
These optional adapters can be used to extend the voltage range.
HPR3V3 (772-3072)
HPR1V2 (772-3081)
HPRAVR (772-3084)
ISP2ZIF (772-3088)

PC Based Programmers

ESD Control Selection Guide V1

Datasheet - Seeit PRESTO
