DF12(3.0)-10DS-0.5V(86), Hirose DF12 Series Straight Surface Mount PCB Socket, 10-Contact, 2-Row, 0.5mm Pitch, Solder Termination

0.5mm Hirose SMT Board to Board Double Row Connectors - DF12 Series

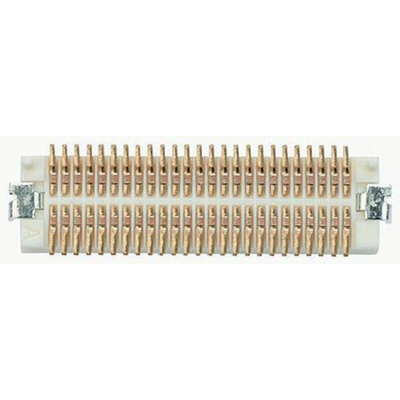

DF12 series straight, SMT mounting, ultra-miniature board to board, double row header and receptacle connectors with a 0.5mm contact pitch available with a variety of stacking heights. These 0.5mm PCB mount double row connectors have a UL94V-0 polyamide body and gold plated contacts.

Features and Benefits

• Available with PCB retention hardware and location posts
• Gold plated contacts

Note

DF12 SMT Header and Receptacle connector mated stacking heights:
DF12(3.0)-xxxx-xxxx have a stacking height of 3mm
DF12(3.5)-xxxx-xxxx have a stacking height of 3.5mm
DF12(4.0)-xxxx-xxxx have a stacking height of 4.0mm
DF12(5.0)-xxxx-xxxx have a stacking height of 5.0mm
If no figure in brackets is quoted then the stacking height will be 3.5 to 5.0mm.
These DF12 SMT board to board header connectors have board guide bosses and metal fittings for solder retention.

2D Drawing

DF12 Series Datasheet
