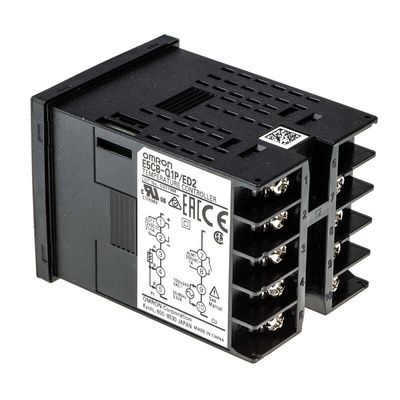

E5CB-Q1P AC100-240, Omron E5CB PID Temperature Controller, 48 x 48mm, 1 Output: 1x Relay, 1x Logic, 100 → 240 V ac Supply Voltage, Регулятор температуры

Omron Temperature Controller

The Omron E5CB series temperature controller has a voltage output (for driving SSR) of 12VDC, 21mA and single alarm relay output of 250VAC, 1A (resistive load). The sensor type is platinum resistance thermometer (Pt100). This controller has a width of 48mm and a height of 48mm 1/16DIN. It is easy to read with one of the largest character display. It has an operating supply of 100VAC to 240VAC.

Features and Benefits

Alarm relay and auto-tuning as standard
Depth beyond front panel is only 60mm
Faster sampling and loop-update at 250ms
Improved visibility with a character height of approximately 16mm
Simple setup is less than 20 parameters

Certifications

CSA C22.2 No. 1010-1
EN61010-1
EN61326
Front panel IP66 rated
IEC61010-1
Rear case IP20 rated
Terminals IP00 rated
UL 61010-1
VDE0106, Part 100 (Finger protection) when the terminal cover is mounted
