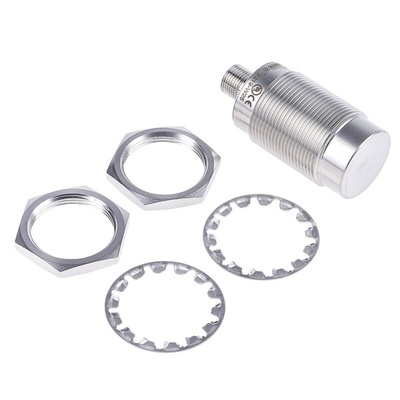

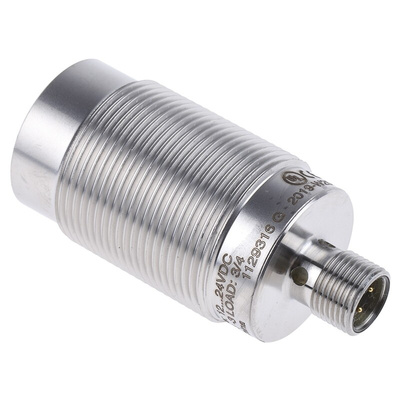

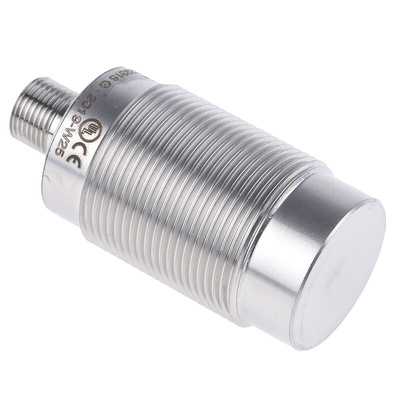

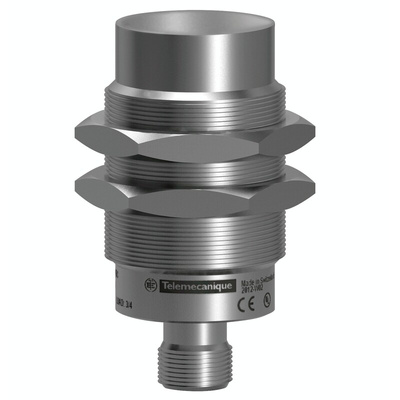

XS930R4PAM12, Telemecanique Sensors Inductive Barrel-Style Proximity Sensor, M30 x 1.5, 40 mm Detection, PNP Output, 10 → 30 V, Индуктивный датчик приближения

XS9 Series Inductive Proximity Sensors - Stainless Steel 303

The XS9 series of inductive proximity sensors have unique one-piece housing, machined from 303 stainless steel solid bars, the housing is extremely resistant to mechanical shocks and vibrations.This range of inductive proximity sensors are ideal for use in harsh industrial environments and well suited for applications such as metal processing machines, automotive and machining. The Factor 1 sensing feature of these sensors allows both ferrous and non-ferrous materials to be detected from the same distance.

Features.

• Cylindrical design


• High switching frequency


• Flush and non flush versions available


• Stainless steel 303 front face


• Three wire DC, solid stare output


• LED indication


• Reverse polarity, overload and short circuit protection

Telemecanique Inductive Proximity Sensors XS.

Telemecanique Inductive Proximity Sensors XS series allow you to detect all types of objects in all applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded).

OsiSense inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase.

How do they work and where can I use them?

Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas.

Applications.

• Railway. Mobile equipment. Lists and escalators. Hoisting. Material handling, conveying, logistics.


• Material working, machine tools. Packaging. Food and beverage. Robotics.

Telemecanique Sensors Proximity Sensor, 90Hz Switching Frequency, 32mm Threaded Length - OsiSense XS Series - XS930R4PAM12

Need a quick and easy way to detect metals? Add this proximity sensor from Telemecanique Sensors to your setup. It generates an alternating electromagnetic field that senses when a metal object enters its field of view. You can use it to determine the location of these items up to 40mm away, so it's ideal for preventing components in automated systems from going off track. As the unit's protected against sudden surges and reverse polarity, you can trust it to keep your system running smoothly.

Features & Benefits

• Reliable in extreme settings thanks to a wide operating temperature range between -25°C and +70°C
• Durable stainless steel housing resists corrosion in humid environments
• IP68 and IP69K ratings mean it's dustproof and water-tight, so suitable for use in contaminated settings

Applications

• Manufacturing industry
• Recycling management
• Packaging systems
• Automotive production

How do I mount this sensor?

Use either a fixing clamp (334-1758) or a mounting bracket (179-9948) to secure it to the surface of your choice.

What actuating cables pair with this product?

Add either the straight M12 actuator cable (612-2235) or the right-angle version (612-2257) to hook this sensor up to your system in a jiffy.
