RS PRO Iron Female Pneumatic Quick Connect Coupling, NPT 1 Female Threaded, Муфта

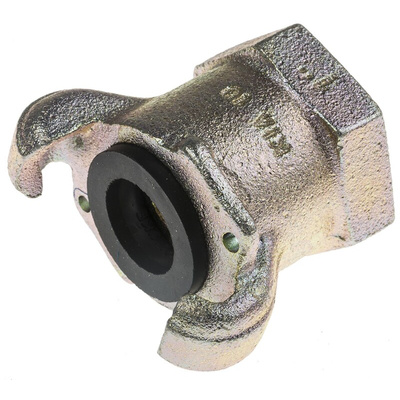

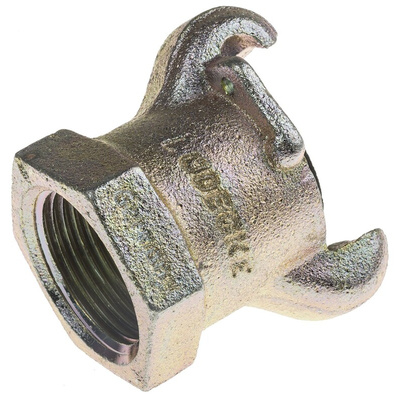

RS PRO 1-inch NPT Female US Universal Claw Type Coupling

Get connected with the RS PRO 1-inch Type Q malleable iron US universal claw coupling complete with an oil resistant rubber O-ring. To ensure safety and for a secure seal the claw coupling should be secured from opening using safety clips DIN 11024. The coupling connector is free from chrome VI, zinc plated with a yellow passivated finish plus provides a 100% couple test and sight control.

Features & Benefits

• US Claw coupling


• Universal coupling


• Bored


• Female


• Type Q NPT


• Made from malleable iron


• Oil resistant rubber O-ring


• Zinc yellow passivated finish


• 10 bar / 145 psi / -40°F to +95°F working pressure


• Temperature rating -40°C to 95°C


• 100% Couple test / sight control


• Use safety clips DIN 11024 for secure fixing

Applications

• Compressed air applications


• Construction industries


• Industrial use


• Internationally used system

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards, they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size

Per unit, RS Stock No: 773-0547

Large Pack Size

Pack Quantity of 25, RS Stock No:250-9134

Q Type Claw Couplings

Q Type Claw Couplings are suitable for medium to high pressure compressed air applications, incorporate a safety 'pin lock' feature that prevents accidental disconnection, and are fully interchangeable with standard European claw couplings. The couplings are manufactured from malleable iron, with a Zinc-plated finish. The couplings also feature a security collar on the stem for use with HP clamps, to prevent hose 'blow off'.

RS Pro Datasheet
