Keysight Technologies 34450A Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max - RS Calibrated, Мультиметр

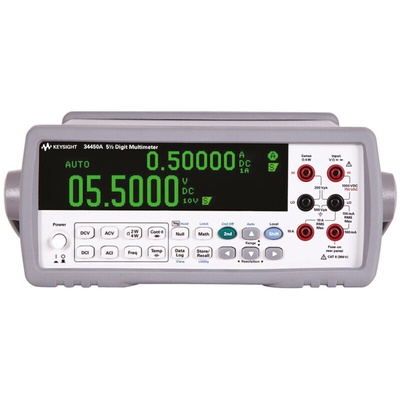

Keysight 34450A Multimeter, 5.5 digit

The Keysight 34450A is one of the fastest benchtop digital multimeters in its class, capable of measuring up to 190 readings per second with 0.015% DCV accuracy. It can deliver up to 50,000 readings of onboard memory, enabling users to log up to 14 hours of data at one sample per second. To simplify day-to-day tasks, the 34450A comes with a built-in histogram, performs basic statistical functions and provides simple data analysis.

Features and Benefits

• Up to 190 readings/second
• 0.015% DCV accuracy
• 11 measurement functions
• Ultra-bright OLED with dual display capability
• Up to 50,000 memory points for data logging
• Built-in histogram function

Further Insight

The 34450A offers a 5.5 digit OLED dual display that allows clear and quick view measurements such as trend and histogram charts offering further insight quickly. Trends can be detected faster, for example, histograms can be used to assess the variance of a measured value accurately and faster.

Triggering

The 34450A has a triggering function that allows you to initiate a measurement at desired conditions. This feature is used through the front panel during manual operation, while for an automated operation the Multimeter is controlled through the USB, GPIB or serial connector.

Data Logging

The 34450A allows you to store measurement results into its 50k non-volatile memory through the data logging function. You can perform data logging when using either single or dual display measurements.

Limit Test

Limit testing is an extra value-added feature of the 34450A. When the limit operation is enabled, the multimeter instantly notifies you if a measurement result falls outside the high or low limits you have pre-set before the series of measurements.

Digitising Data

Capturing a digital readout of log measurements or records for longer periods under PC control or upload data directly from the bench multimeter. Exporting data from a single Multimeter or multiple multimeters with time alignment, to programmes such as Microsoft Excel, Word and MATLAB.

Note

Upgrades available separately include: 773-9761 (3445GPBU) for GPIB connectivity on user's hardware; 773-9764 (3445MEMU) for up to 50,000 memory points to be saved to user's 34450A

Supplied with

Test lead set, power cord, USB interface cable, quick-start guide, product reference CD, Keysight I0 Library Suite CD-ROM

Keysight Technologies Multimeter, 100mV to 1000V DC Voltage Measurement Range, 3.75kg Weight - 34450A

Get reliable electrical measurements with this bench multimeter from Keysight Technologies. It's a versatile unit that records 11 functions, including current, voltage, resistance and capacitance. Thanks to its high-speed performance of up to 190 readings per second, it helps improve productivity in your work environment. Its DC voltage accuracy of 0.015% means you can rely on the device to obtain precise results. Its compact dimensions of 103.8 (height) x 261.1 (width) x 303.2mm (depth) ensure it doesn't take up too much workbench space. This device accommodates USB 2.0, RS-232 serial interface or GPIB connections for flexibility.

Features & Benefits

• Memory of up to 50,000 readings for storing large amounts of data
• Integrated histogram function for greater ease of data analysis
• OLED display shows readings clearly for ease of use

Applications

• Aerospace industry
• Automotive applications
• Semiconductor testing
• Industrial applications
• Healthcare equipment

At what temperatures can I use this bench multimeter?

This unit retains its accuracy across a broad operating temperature range of 0°C to +55°C, so it's suitable for use in harsh environments.

Datasheet
