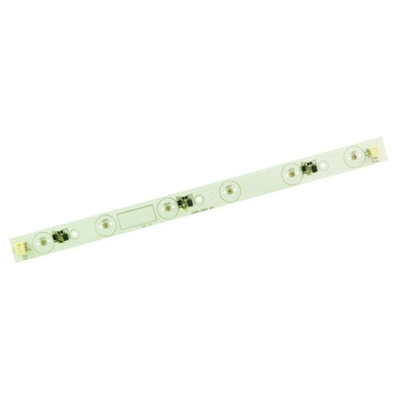

Intelligent LED Solutions OSLON Square Series, White LED Strip, ILS-OO06-STWH-SD111.

OSLON Square 6 LED Strips

The Oslon Square 6+ series of LED lighting strips, from Intelligent LED Solutions, feature 6 Oslon SSL Square ThinGan (UX:3) LEDs. Utilising Osram’s latest power chip technology they remain efficient when driven at currents of up to 1000mA. Additionally these Oslon SSL 150 6+ LED lighting strips have industry standard connectors for simple plug and play use, making them ideal for a wide range of applications including: general lighting, decorative lighting, task lighting, spot lighting, down lighters, retail and entertainment lighting.

Oslon Square 6+ Strips contain Oslon SSL Square LED with integral 120° silicone resin lenses
Lifetime up to 100,000 hours to 70% of original brightness
Mounting holes (3mm diameter) allows easy installation with screws
PCB dimensions (L x W x H): 300mm x 20mm x 1.6mm
Brightness adjustable by external dimming gear
Single input voltage, each board has own regulation built-in
24VDC operation
Up to 5 Oslon Square 6+ Strips can be linked together to form longer chains
See datasheet for suitable secondary lenses and power supplies

Note

Oslon SSL Square 6+ LED strips will overheat in operation if not attached to a suitable heat sink, over heating can cause failure or irreparable damage.

Intelligent LED Solutions LED Modules - Strips

OSLON Square 6+ Strip Whites Data Sheet
