Intelligent LED Solutions ILH-IO04-94SL-SC201-WIR200. ILS, OSLON Black PowerStar 940nm IR LED Array, PCB SMD package, Инфракрасный светодиод

PowerStar IR LED Arrays - IR OSLON Black 4

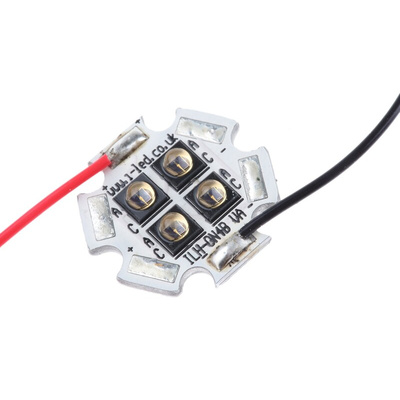

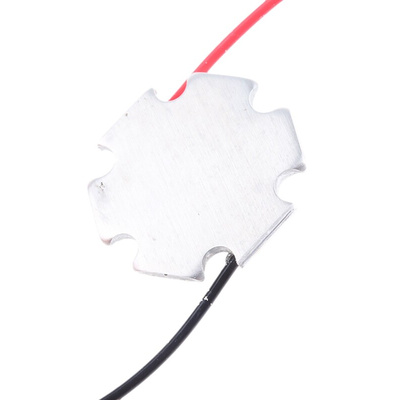

The Oslon 4 PowerStar IR series of IR LED arrays, from Intelligent LED Solutions, feature 4 Osram IR Oslon Black Series IR LEDs. PowerStars are compact, powerful LED light sources built on aluminium substrates for optimal thermal management, they are pre-wired with 200mm wires as standard. The versatile IR Oslon 4 Powerstar LED arrays are ideal for a wide range of applications including: surveillance systems, IR illumination for cameras, machine vision, night vision light and driver assistance systems.

Oslon 4 PowerStar IR LED arrays contain 4 Osram IR Oslon Black Series IR LEDs
Current range 100 to 1,000mA
Lifetime: Up to 100,000 Hours to 70% of original brightness
Mounting holes for M3 screws allow easy installation
Size (L x W x H): 20mm x 20mm x 3.85mm
Pre-wired with 200mm connecting wires
PowerStars can be linked together to produce longer chains
See datasheet for suitable heat sinks, constant current LED drivers and thermal interface material

Caution

Depending on the mode of operation, these devices emit highly concentrated non-visible infrared light which can be hazardous to the human eye.

Warning

PowerStar IR LED arrays will overheat in operation if not attached to a suitable heat sink. Over heating can cause failure or irreparable damage.
Do not operate PowerStar IR LED arrays with a power supply with unlimited current. Connection to constant voltage power supplies that are not current limited may cause the PowerStar LED array to consume current above the specified maximum and cause failure or irreparable damage.

Intelligent LED Solutions (ILS) IR LED Arrays

Datasheet
