Intelligent LED Solutions ILR-IO16-85SL-SC201-WIR200. ILS, OSLON Black PowerCluster 850nm IR Cluster LED Lamp, PCB SMD package, Инфракрасный светодиод

PowerCluster IR LED Arrays - IR OSLON Black 16

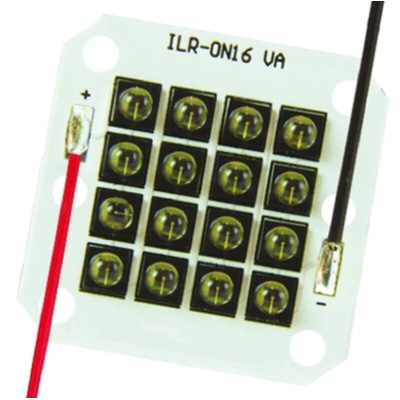

The Oslon 16 PowerCluster IR series of infrared LED arrays, from Intelligent LED solutions, feature 16 Osram IR Oslon Black IR LEDs. Powerful and compact, PowerCluster IR LED arrays are built on aluminium substrates for optimal thermal management and come pre-wired with 200mm wires as standard. Oslon 9 PowerCluster IR LED arrays are ideal for a wide range of applications including: surveillance systems, IR illumination for cameras, machine vision, night vision light and driver assistance systems.

Oslon 16 PowerCluster IR LED arrays contain 16 Osram IR Oslon Black series LEDs
Current range: 100 to 1,000mA
Lifetime: Up to 100,000 hours to 70% of original brightness
Mounting holes for M3 screws allow easy installation
PowerCluster size (L x W x H): 30x30x4mm
Pre-wired with 200mm connecting wires
PowerClusters can be linked together to produce longer chains
See datasheet for suitable heat sinks, constant current LED drivers and thermal interface material

Caution

Depending on the mode of operation, these devices emit highly concentrated non visible infrared light which can be hazardous to the human eye.

Warning

PowerCluster IR LED arrays will overheat in operation if not attached to a suitable heat sink, over heating can cause failure or irreparable damage.
Do not operate PowerCluster LED arrays with a power supply with unlimited current. Connection to constant voltage power supplies that are not current limited may cause the PowerCluster LED array to consume current above the specified maximum and cause failure or irreparable damage.
