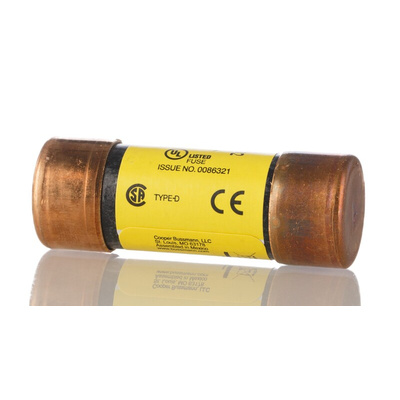

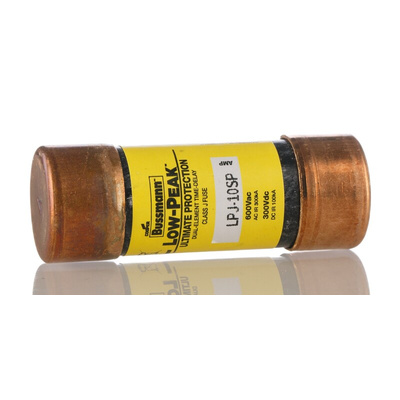

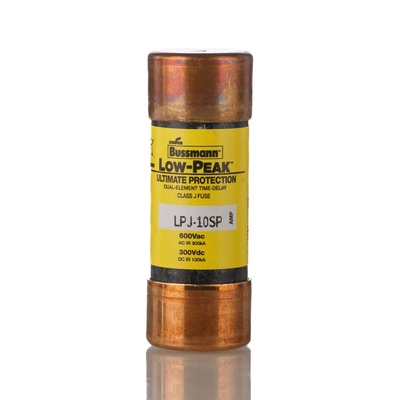

LPJ-10SP, Eaton 10A T Cartridge Fuse, 21 x 57mm, Предохранитель

Dual-Element, Time Delay Fuses, Class J - 600Volt

Class J fuse
True Dual element fuses with minimum 10 second time delay at 500% overload
Dual element construction reduces power loss and gives cooler running
High breaking capacity: 300kA
Voltage rating 600Vac
High degree of current limitation due to fast speed of response to short circuits
Unique dimensions ensure that a different fuse cannot be substituted

Note

Stock Nos. 513-0623 & 513-0718 have blade terminals

Standards

UL 248-8 Class J

Approvals

UL Listed; CSA Certified

Eaton Cartridge Fuse, 10A, 300V AC LPJ-10SP

Use this cartridge fuse from the Eaton range to protect your electrical loads from the hazardous effects of short circuits and overcurrents. As a T-speed fuse, it's slow-acting and can accommodate voltage and current surges for a short period. This means it's especially useful for appliances needing a high starting current. Ceramic housing gives it a high breaking capacity of 10kA at 300V to make it practical for high-current applications. With compact dimensions of 21 (diameter) x 57mm (length) this fuse is a good choice for busy setups where space is limited.

• Can be used for both AC and DC supply voltages for versatility
• Dual element construction to minimise power loss and enable cooler running
• Compatible with an indicator for easy diagnosis and troubleshooting
• Voltage rating of 600V AC for use in low-voltage applications

What does breaking capacity mean?

The breaking capacity of a fuse is the amount of current it can safely handle before it breaks or melts and disrupts the flow of power in your circuit.

Note

Eaton formerly known as Bussmann
