LPJ-100SP, Eaton 100A Centred Tag Fuse, 1.13 x 4.63in, 300V ac, 92.2mm, Предохранитель

Dual-Element, Time Delay Fuses, Class J - 600Volt

Class J fuse
True Dual element fuses with minimum 10 second time delay at 500% overload
Dual element construction reduces power loss and gives cooler running
High breaking capacity: 300kA
Voltage rating 600Vac
High degree of current limitation due to fast speed of response to short circuits
Unique dimensions ensure that a different fuse cannot be substituted

Note

Stock Nos. 513-0623 & 513-0718 have blade terminals

Standards

UL 248-8 Class J

Approvals

UL Listed; CSA Certified

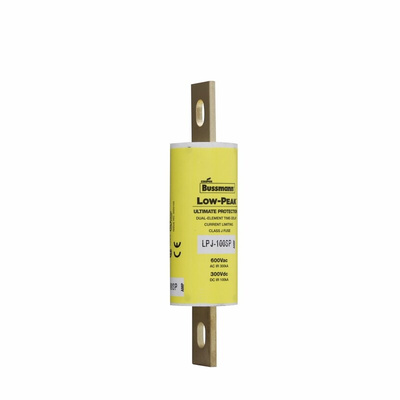

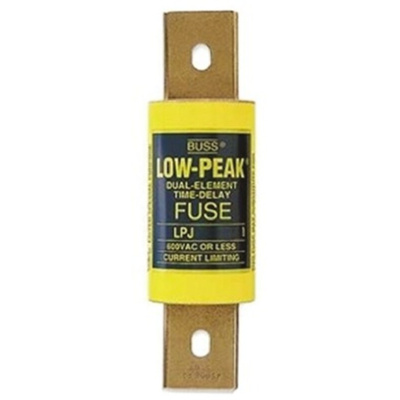

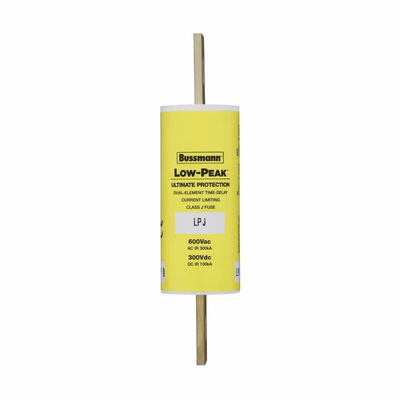

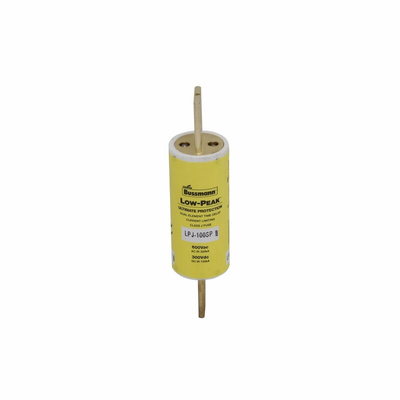

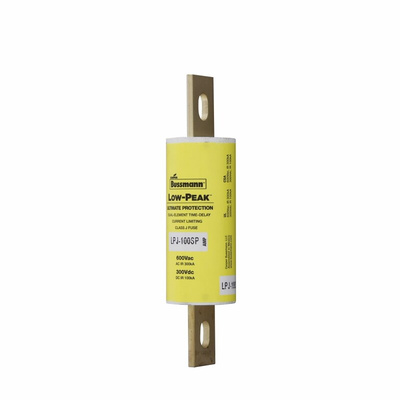

Eaton Centred Tag Fuse, 100A, 600V AC LPJ-100SP

Want to safeguard your equipment from damage through current overload? Turn to this centred tag fuse from Eaton. It's suitable for installation in many applications thanks to its compact size of 1.13 (W) x 4.63in (H). The current-limiting component clears a current fault within its first seconds and protects other components unable to withstand thermal and magnetic forces. This fuse has a low electrical resistance so it runs at a cooler temperature and is less likely to break or overheat.

• High rupture capacity or interrupt rating of up to 300,000A for maximum protection against current surges
• True-dual element fuse with minimum 10 second time-delay at 500% overload to pass harmless motor or current surges
• Current rating of 100A for safe use in medium-voltage applications

What speed class is this fuse?

This fuse's speed is marked as Class T also known as slow-acting (Trage). A Class T fuse has a built-in delay triggering slow-acting reaction to harmless current surges and temporary overload but will speedily act on sustained current overloads or short circuits.

Note

Eaton formerly known as Bussmann
