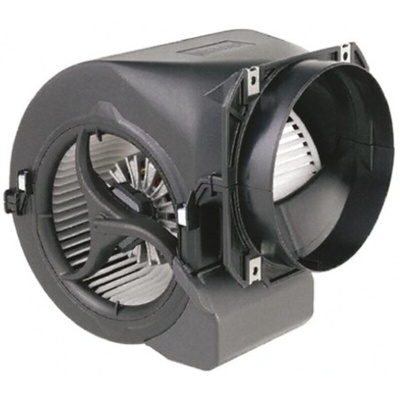

D2E146-HR93-A1, ebm-papst D2E 146 Series Centrifugal Fan, 230 V ac, 430m³/h, AC Operation, 216 x 220 x 195mm

ebm-papst Centrifugal Fan

The ebm-papst dual inlet centrifugal fan has an airflow of 435m³/h (for 60Hz) at a fan speed of 1630rpm and has a supply voltage rating of 230VAC. The fan is featured with the forward curved, long blade. This is integrated within the impeller that reduces installation dimensions. Constructed from black PP plastic, ebm-papst blowers are rugged and have a long life. It is 216mm long, 220mm wide and 195mm deep.

Features and Benefits

Sealed for life
Maintenance free
Class F insulation
Impeller is forward curved multi-vane type
Material of impeller is PP plastic, white
Scroll die-cast with motor capacitor, mounting flange and finger guard/filter fixings
Ball bearing type, may be mounted in any position
With housing (flange)

Applications

Industrial use
Central air conditioning units or building ventilation systems
Automobile

Certifications

CE certified
EN 60335-1
VDE approved
GOST certified

ebm-papst AC Centrifugal Fans - D2E146-HR93-A1

D2E146-HR93-A1 Operating instructions
