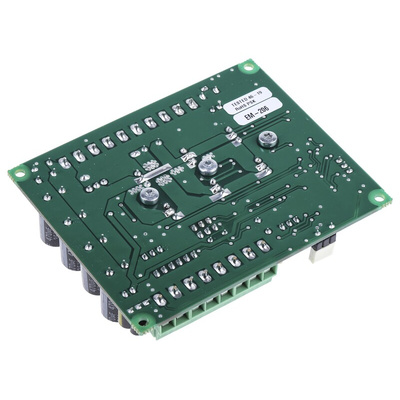

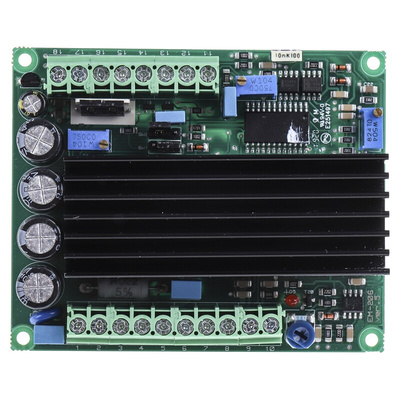

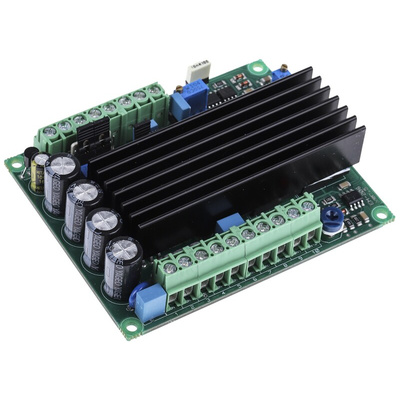

EM-206 Brushless Motor Controller

EM-206 is a DC-motor controller that is designed for brushless motors with hall sensor feedback. The unit has a mosfet-type high efficiency power stage. The unit is equipped with standard controls, such as speed, stop, reversing and braking.

Three phase output
Continuous speed adjustment
Reversing
Braking
Hall sensor supply and input
60º or 120º commutation
Settable / controllable current limit
Fault output
Open or closed loop activity
High efficiency
Rail base mountable

DC Drives - Brushless

Electromen - EM-206 BLDC MOTOR CONTROLLER 12-36 V DC, 10A

The EM-206 is a DC-motor controller designed for brushless motors with hall sensor feedback (60º or 120º commutation).High efficiency is achieved by using a MOSFET power stage and RF emissions are very low.

The unit is allows control of speed, direction and braking, speed control is set using external inputs or the on board trim pots
There are open and closed loop control modes - open loop (direct control) sets the motor voltage proportional to the control voltage and closed loop mode uses hall sensor feedback for more accurate speed control
Current limit restricts motor torque when motor current exceeds the set value, this can be adjusted with trim pot or with an external signal
Fault output indicates current limit, under voltage and sensor faults
The optional EM-A1 expansion card can be installed to provide symmetrical control with the an external ±10V signal

Features and Benefits

Three phase output
Highly efficient with very low EMC emissions
Continuous speed adjustment
Reversing and braking control
Symmetrical control (rev-stop-fwd) option ±10V
Fault output
Open/closed loop modes
DIN rail mountable
12-36Vdc, 10A continuous, 15A peak
Open & closed loop control operation with hall sensor feedback
Speed, direction, current limiting, soft start/stop and braking control
Compact and DIN rail mountable
Symmetrical control (rev-stop-fwd) can be achieved with EM-A1 card option
