EM-285, Electromen OY DC Motor Controller, 10 → 35 V dc, 20 A, 12 V dc, 24 V dc, Контроллер

EM-285 DC-Motor Speed Regulator

EM-285 is a PWM-based DC-motor driver. The materials and features meet the industrial standards.
Motor voltage is regulated against supply voltage changes, and there is also a load compensation adjustment (RxI), which enables steady speed during motor loading.

Speed continuous to 1-direction
Motor size 30-200W
Good speed regulation
Load compensation adjustable RxI
Adjustable current limit
Overheating protection
Panel mountable
Small size
EMC tested

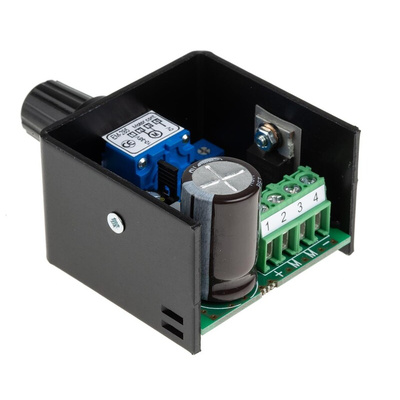

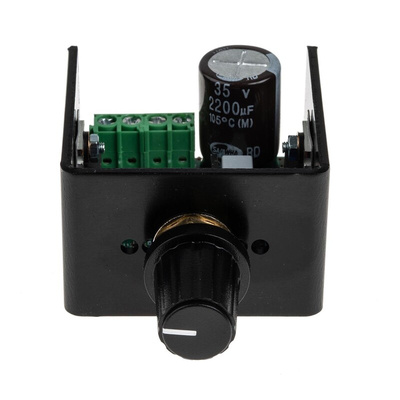

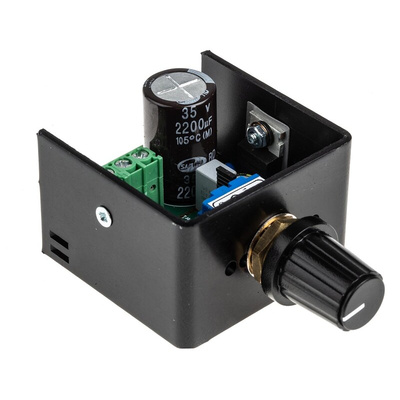

Electromen - EM-285 20A 12-32VDC, POTENTIOMETER DRIVE BOARD

The EM-285 is a PWM-based DC-motor driver developed for industrial environment applications. The unit is packaged for very easy panel mounting by means of a Ø10mm through holeThe drive has very low RF emissions and is suitable for use in in critical electromagnetic environments including medicalMotor voltage is regulated against supply voltage changes and also offers load compensation adjustment. Current limit and speed range are adjusted with onboard trim pots.
The power stage of the device is protected against short-circuit and over temperature situations

Features and Benefits

12-24Vdc, 20A continuous, 30A peak
Speed control without loss of torque
Adjustable current limit
Direct mounting to control panel
Smooth PWM speed regulation
Suitable for 30-200W brushed DC motors
Easy direct mounting to panel (Ø10mm hole)
Load compensation
Adjustable current limit
Overload and short-circuit protection
Low RF emissions
Compact size
