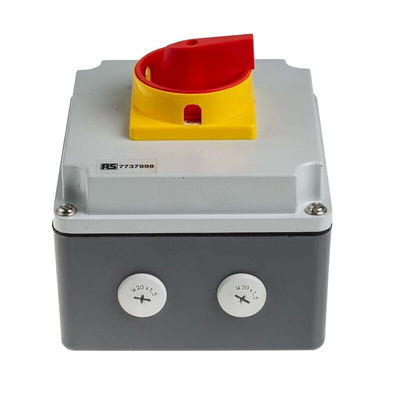

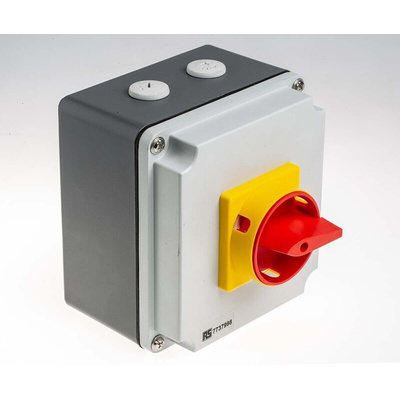

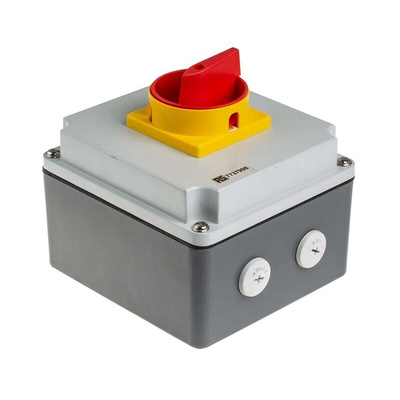

RS PRO 4P Pole Panel Mount Isolator Switch - 25A Maximum Current, 11kW Power Rating, IP65

RS PRO 3 Pole Panel Mount Non Fused Isolator Switch - 25 A Maximum Current, 11 kW Power Rating, IP65

Use this non-fused isolation switch to separate circuits from their main power source, so you can work on them safely. You can use an isolator switch to power down a whole electrical circuit or simply isolate part of one whenever it needs attention, so it's designed to keep you safe. Non-fused models can be reset by replacing a fuse, as they come with a knife-blade or rotary function disconnect.

Part of our RS PRO range, it's been stringently tested by leading engineers for consistency and durability. It operates safely from -25°C to +80°C so is suitable to use in a range of settings. It's enclosed in flame-resistant materials so can be used in electrical circuits, transmission lines and transformers where there is a risk of fire.

Electrostatically safe, it won't damage your equipment through discharge and conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.

Features and Benefits

• Panel mounting
• Maximum current of 25 A
• Power rating of 11 kW
• Voltage rating of 690 V AC
• Switch rating of 5 kA
• Operating temperature range of -25°C to +80°C
• Flame retardant, dust-tight and water-resistant materials (IP65 Rating)
• Can only be removed in the OFF position
• Red handle colour
• Accepts padlocks
• Length of 152 mm
• Four poles

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
