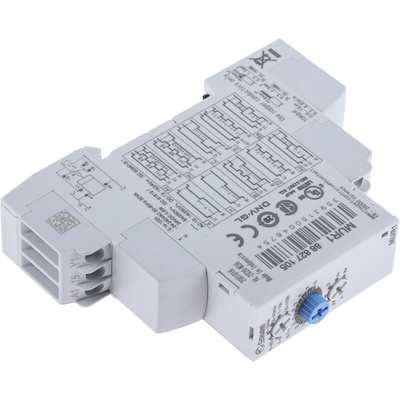

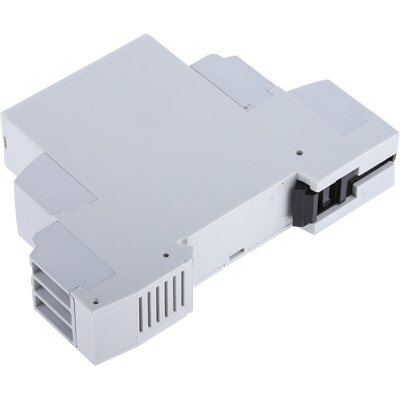

88827105, Crouzet DIN Rail Mount Timer Relay, 24 → 240 V ac, 24V dc, 1-Contact, 0.1 s → 100h, SPDT

Crouzet Multi-Function Timer Relay

The Crouzet multi-function timer relay is a compact device with a solid-state output and an option of connecting an external power supply to the control input. It performs the function of providing a delay in the asymmetrical, interval, off delay, on delay, on the pulse, symmetrical flashing ON and OFF forms ranging between 0.1 second and 100 hours.

Features and Benefits

Multiple timing ranging between 1 second to 10 seconds , 10 seconds to 1 minute, 1 minute to 10 minutes, 10 minutes to 1 hour, 1 hour to 10 hours, 10 hours to 100 hours
1 changeover relay output of 8A
SPDT contact configuration
Multi-voltage supply options ranging between 24VAC to 240VAC and 24VDC
Screw or spring terminals
LED status indicator (relay version)
Possibility of external load connection in parallel to the control input
Three wire PNP sensor compatible

Applications

Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control

Certifications

IP20 rated
IP40 rated
IP50 rated
IEC/EN 61812-1
IEC/EN 61000-6-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 61000-6-4
CE certified
UL approved
cUL certified
CSA certified
GL certified
