36792-1201, Molex, MX120G Female Connector Housing, 3.2mm Pitch, 12 Way, 2 Row, Корпус разъема

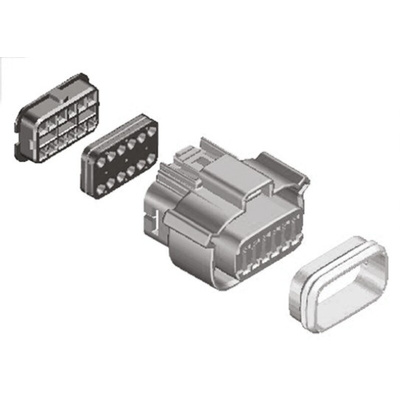

Molex MX120G Sealed Shrouded Receptacle Assembly with Latch

The Molex MX120G IP67 rated Sealed Receptacle Assembly pre-crimped contacts are simply inserted until an audible click is heard. For voided circuits in a MX120G IP67 rated Sealed Receptacle Assembly a Cavity Plug, stock number 774-1032 , is available and again is simply inserted in any position until an audible click is heard.

Note

For MX120G female Contacts see stock number 774-1020 typical.

Molex MX120G Sealed Interconnect System

The Molex MX120G Sealed Interconnect System provides compact 3.2 mm mating pitch IP67 rated connectors for harsh environments such as high vibration, wet and with wide temperature variations. With its built-in positive locking and twist-lock features providing robust retention and alignment of the terminals the MX120G Sealed Interconnect System needs no additional fasteners. The design of the MX120G Sealed Interconnect System includes a single piece receptacle housing with a pre-assembled perimeter seal, matte silicone grommet seal and grommet cap for time saving assembly and polarizing slots provide easy interconnection.

Temperature Rating -40 to +105 °C
Current Rating from 7 to 10.5 A depending on wire size

MX120G Sealed Connectors Brochure

MX120G Sealed Connectors Female Housing Data Sheet

MX120G Sealed Connectors Female Housing Drawing

MX120G Sealed Connectors Application Specification
