36783-1201, Molex MX120G Series Right Angle Through Hole PCB Header, 12 Contact(s), 3.2mm Pitch, 2 Row(s), Shrouded

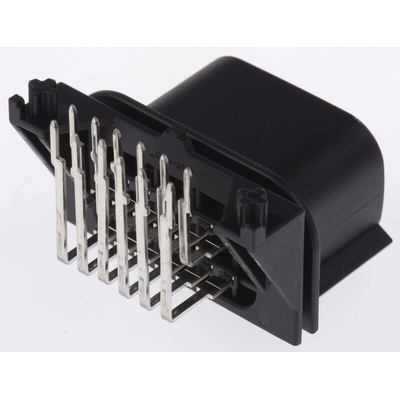

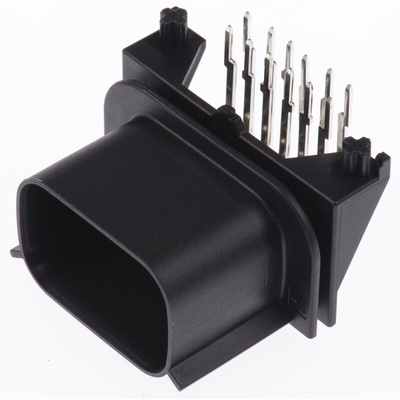

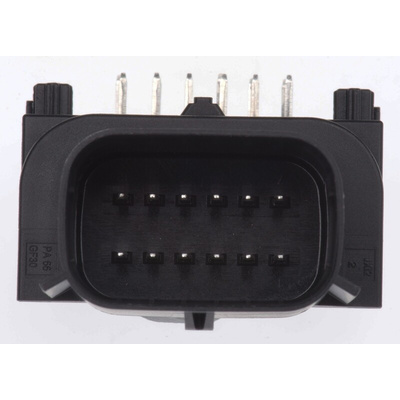

Molex MX120G Sealed Shrouded Right Angle Header Assembly

The Molex MX120G Headers have Tin plated Brass pin terminal contacts. The design of the MX120G Header includes a 1.6 mm wide slot for mounting into enclosure walls and moulded PCB location pegs. The PCB tails of the MX120G Header have a pitch of 3.5 mm and are suitable for 1.6 mm thick PC Boards.

Note

For MX120 Sealed Receptacle Assembly see stock number 774-1023 .

Molex MX120G Sealed Interconnect System

The Molex MX120G Sealed Interconnect System provides compact 3.2 mm mating pitch IP67 rated connectors for harsh environments such as high vibration, wet and with wide temperature variations. With its built-in positive locking and twist-lock features providing robust retention and alignment of the terminals the MX120G Sealed Interconnect System needs no additional fasteners. The design of the MX120G Sealed Interconnect System includes a single piece receptacle housing with a pre-assembled perimeter seal, matte silicone grommet seal and grommet cap for time saving assembly and polarizing slots provide easy interconnection.

Temperature Rating -40 to +105 °C
Current Rating from 7 to 10.5 A depending on wire size

MX120G Sealed Connectors Brochure

MX120G Sealed Connectors Header Data sheet

MX120G Sealed Connectors Header Drawing

MX120G Sealed Connectors Application Specification
