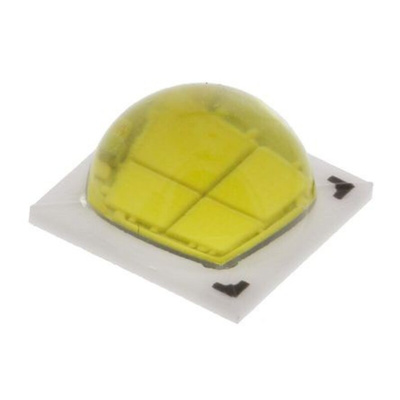

12 V White LED SMD, Lumileds LUXEON M LXR8-SW27, Светодиод

Lumileds LUXEON M Series LEDs

LUXEON M series LEDs, from Lumileds, are lighting grade LEDs in a surface mount package. They provide maximum flux density and efficiency with a minimum CRI of 70 (white LEDs). Featuring uniform colour and light intensity, LUXEON M LEDs are designed for applications optimised for low cost or high efficiency applications. They offer high brightness and high efficacy from a multi-die device. These factors enable the use to reduce the number of LEDs required within a design. The LUXEON M's crisp, shadow-free beam makes it ideal for outdoor lighting applications such as street lights. Other suitable applications include downlights and retrofit lighting.

Features of the LUXEON M LEDs:
Compact size: 7.0 x 7.0 x 3.75 mm
Designed for indoor, outdoor and industrial applications
High flux density
Hot Tested and specified, with Freedom-from-Binning
Uniform intensity and colour across source with minimum CRI (Colour rendering Index): 70
12V package for use with high efficiency and low cost drivers
Exceeds Energy Star lumen maintenance requirements

Visible Light LEDs, Lumileds

Datasheet

Guide to LUXEON LEDs

LUXEON M
