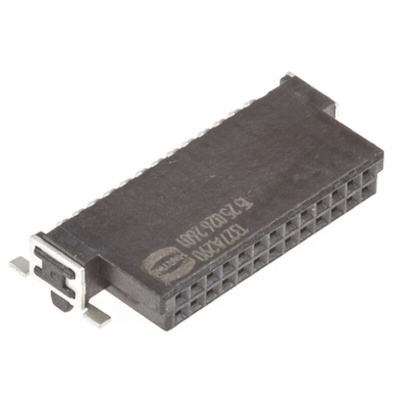

15250502601000, Harting Har-Flex Series Right Angle Surface Mount PCB Socket, 50-Contact, 2-Row, 1.27mm Pitch, Solder Termination

Harting har-flex SMT 90 deg Sockets

This range of Harting har-flex right angled SMT female sockets are suitable for Board to Board applications. These har flex right angled SMT female sockets have a performance level of > 500 mating cycles. The above board height of these har-flex right angled SMT female dual row sockets is 3.7 mm. The design of the har-flex right angled SMT female dual row socket includes Ø1.5 mm board fixing pegs for accurate positioning and retention on the PCB.

Note

For suitable har flex headers see stock number 774-4158 typical for 90 ° or 747-2525 typical for straight orientations.

Approvals

UL 94-V0

The 1.27mm Harting har-flex Series

The Harting har-flex series connectors represent a space saving, rugged and flexible solution for a wide range of Board-to-Board applications in SMT technology. The continuous scalability by an even number of contacts, i.e. from 6 to 100, of the Harting har-flex connector series is a special feature forming an ideal basis for customized applications. Mezzanine, Extender-Card and Mother-to Daughtercard Board to Board applications can be designed using the har-flex series of connectors.
